2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device

Name: 2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ/2
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ/2
MOQ:	1 set
Price:	negotiable
Delivery Time:	3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Azimuth Rotation Range:

-90º~+90°

Pitch Rotation Range:

-5°~+85°

Pointing Accuracy (Static):

10″ (3σ)

Repeatability:

2″

Vertical Axis Angular Wobble:

≤2″

Horizontal Axis Angular Wobble:

≤3″

Angular Position Measurement Resolution:

0.0001°

Angular Position Measurement Accuracy:

≤5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device

Product Description

The 2-STGZ/2 two-dimensional tracking turntable has two degrees of motion freedom: azimuth and pitch.

It is a frame-type U-T structure two-dimensional tracking device, primarily used for tracking unmanned aerial vehicles (UAVs).

Product Parameters

1. Turntable Structure: The azimuth axis adopts a "T" shaped structure. The pitch axis adopts a "U" shaped ring frame structure.

2. Azimuth Rotation Range: -90º~+90° (to center point)

3. Pitch Rotation Range: -5°~+85°

4. Zero Point: Equipped with a code disk zero point

5. Pointing Accuracy (Static): 10″ (3σ)

6. Repeatability: 2″

7. Vertical Axis Angular Wobble: ≤2″

8. Horizontal Axis Angular Wobble: ≤3″

9. Angular Position Measurement Resolution: 0.0001°

10.Angular Position Measurement Accuracy: ≤5″

11.Load size: Two Φ250

12. Load weight: 30kg, double lens barrel

13. Turntable weight: 45kg

14. Limits: Dual protection with mechanical and electronic limits

15. Tracking error: <3″

16. Maximum azimuth speed: ≥20°/s;

17. Maximum azimuth tracking speed: ≥2°/s;

18. Maximum pitch speed: ≥20°/s;

19. Maximum pitch tracking speed: ≥2°/s;

20. Maximum azimuth tracking acceleration: ≥2°/s;

21. Maximum pitch tracking acceleration: ≥2°/s.

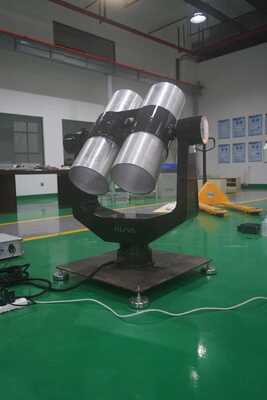

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 0

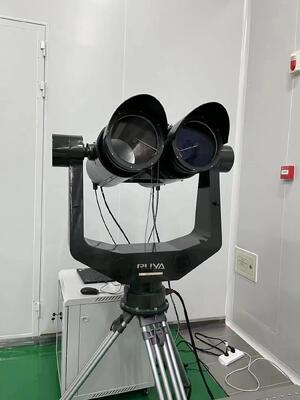

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 1

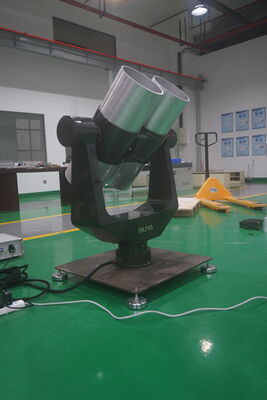

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 2

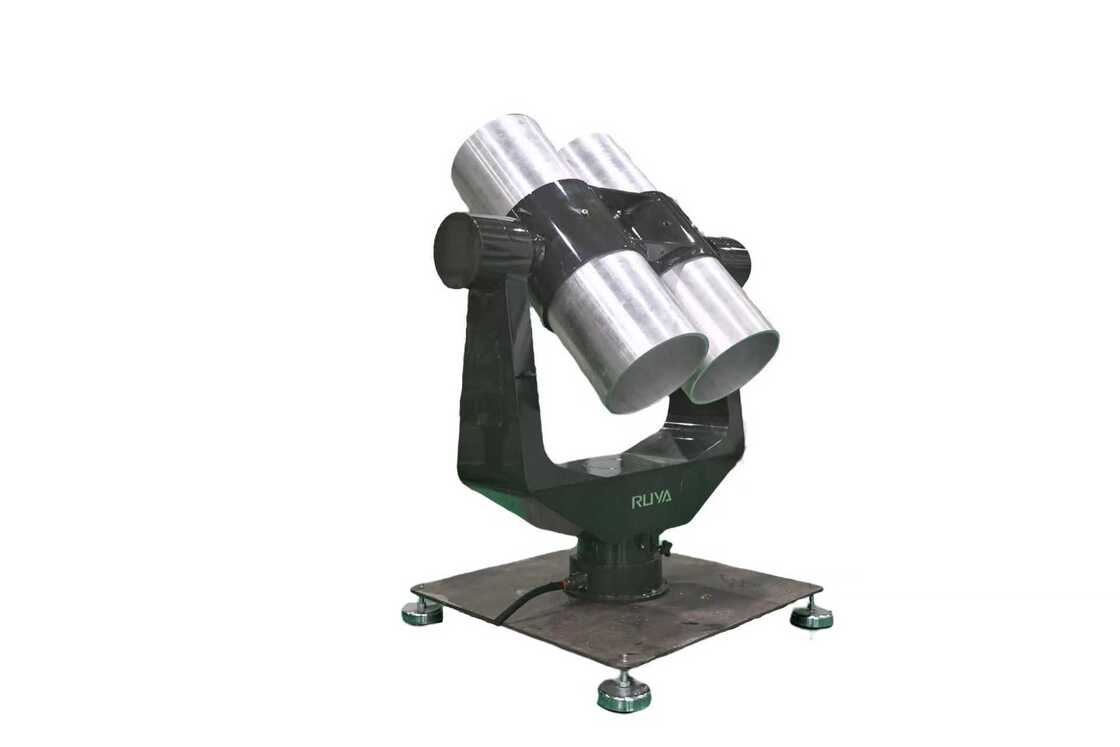

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 3

Our customers

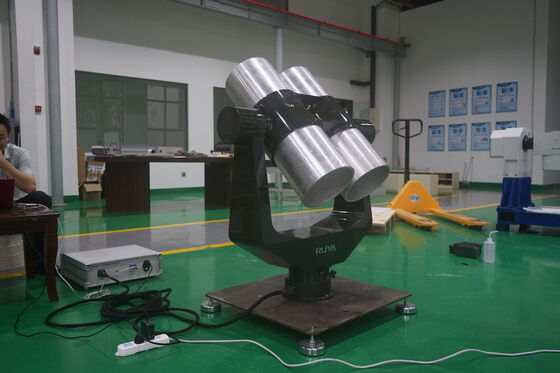

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device 4
