DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber

Name: DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DTC014
Availability: InStock

Brand Name:	RUYA
Model Number:	DTC014
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф 350mm

Countertop Material:

Stainless Steel

Flatness:

Better Than 0.02 Mm

End Face Runout:

≤ 0.02 Mm

Rate Range:

± 0.001 °/ S To ± 3000 °/s

Rate Resolution:

Better Than 0.0001 ° / S

Load Weight:

≥ 20 Kg

User Conductive Slip Ring:

32 Rings, 3 A

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Product Description

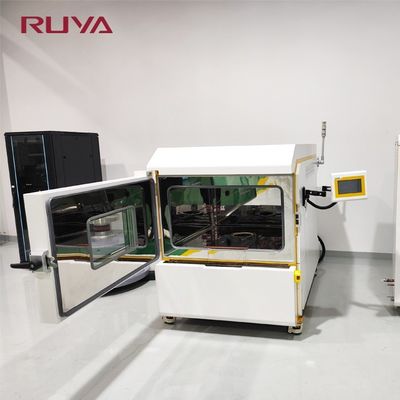

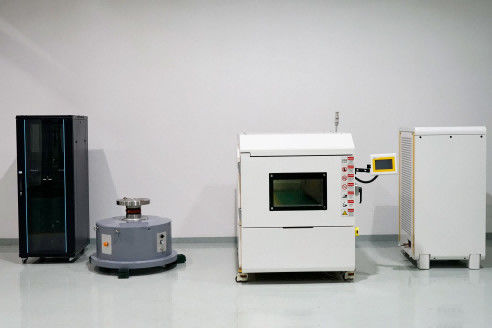

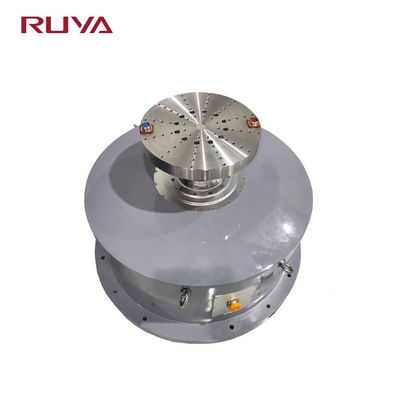

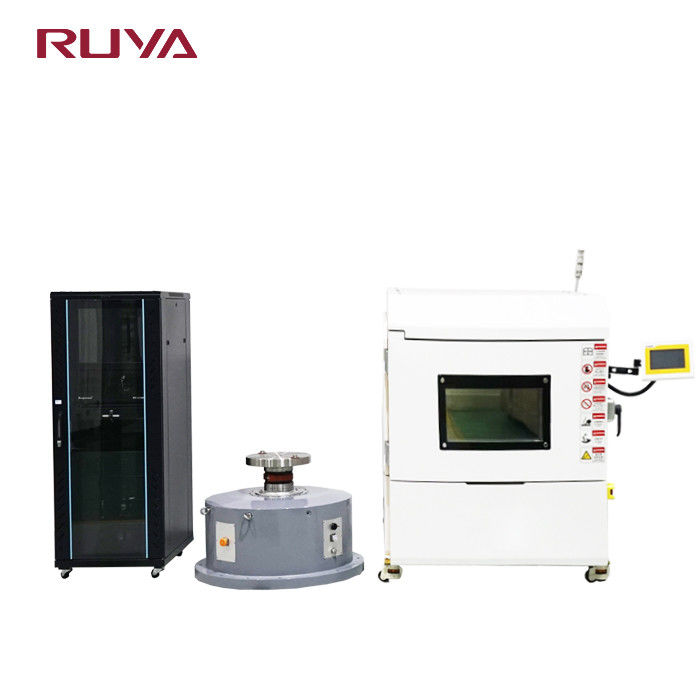

DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber

Product Description

The single-axis temperature control turntable is a high-precision device dedicated to the temperature characteristic test and compensation of MEMS gyroscopes. It can accurately control the temperature in a wide temperature range and perform rotation tests simultaneously to comprehensively evaluate the temperature sensitivity and compensation effect of the gyroscope. Through precise temperature-motion coupling tests, the device provides reliable data support for the temperature compensation and performance optimization of MEMS gyroscopes, significantly improving the stability of the gyroscope in the full temperature range.

Product Parameters

Specification
1	Table Diameter	Ф 350mm
2	Countertop Material	stainless steel
3	Flatness	better than 0.02 mm
4	End Face Runout	≤ 0.02 mm
5	Rotation Range	continuous rotation
6	Rate Range	± 0.001 °/ s to ± 3000 °/s
7	Rate Resolution	better than 0.0001 ° / s
8	Maximum Angular Acceleration	40000 ° /s²
9	Angular Position Accuracy	± 3 ″
10	Angular Position Resolution	0.0001°
11	Angular Position Repeatability	±2″
12	Load Weight	≥ 20 kg
13	User Conductive Slip Ring	32 rings, 3 A

DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber 0

DTC014 Single Axis MEMS Gyroscope Test Turntable With Thermal Chamber 1
