3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber

Name: 3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT550WK
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT550WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Table Diameter:

Ф550mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error:

±2″

Positioning Repeatability:

±2″

Temperature Range:

-50°C~＋120°C

Dimensions Inside The Box:

600mm X 600mmx 620mm

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

3DT550WK Inertial Navigation Test Turntable

3 Axis Inertial Navigation Test Turntable

40Kg test turntables

Product Description

3DT550WK 3-axis Inertial Navigation Test Turntable With Thermal Chamber

Product Description

3FDT550WK three-axis temperature control turntable is a testing equipment that combines temperature control and rotation functions. It is mainly used for performance testing of materials and products in high or low temperature environments.

Product Parameters

Specification
1	Load Weight	40Kg
2	Table Diameter	Ф550mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±3″
6	Perpendicularity Of Three-Axis	±3″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~500°/s；
		middle frame:0.01°/s~200°/s；
		outer frame:0.01°/s~100°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1°average)
		1°/s≤ω<10°/s , 2×10-4 (10°average)
		ω≥10°/s , 2×10-5 (360°average)
12	Maximum Angular Acceleration	inner frame:≥100°/s²；
		middle frame:≥100°/s²；
		outer frame:≥100°/s²
13	User Slip Ring	Customizable
14	Temperature Range	-50°C~＋120°C
15	Temperature Error	±1°C
16	Temperature Fluctuation	±1°C
17	Temperature Uniformity	±2°C
18	Maximum Heating And Cooling Rate	≥3°C/min
19	Dimensions Inside The Box	600mm x 600mmx 620mm

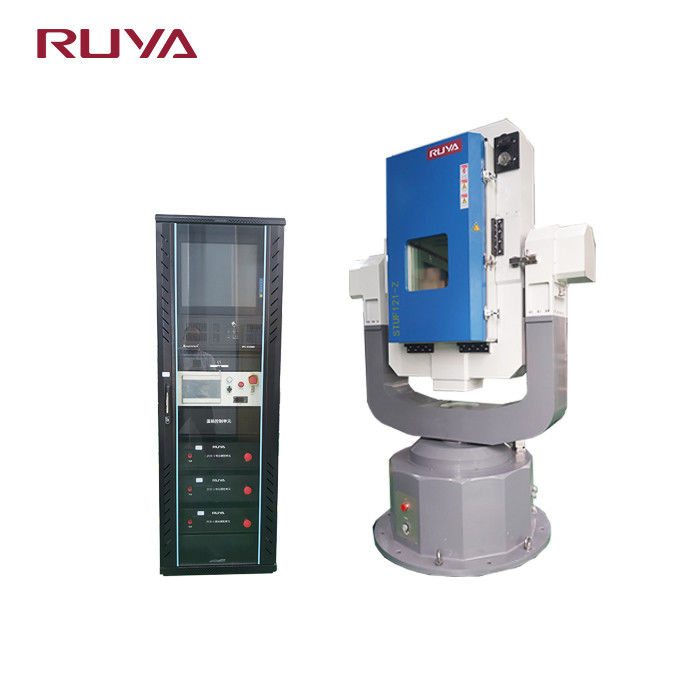

3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber 0

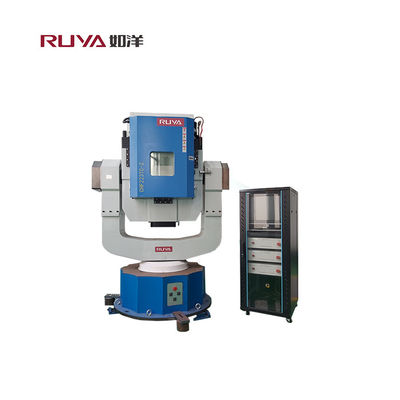

3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber 1
