Horizontal 1 Axis Rate Table With Temperature Chamber Single-axis Temperature-controlled Turntable

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Positioning Error:

±2″

Positioning Repeatability:

±2″

Maximum Angular Acceleration:

≥400°/s²

Dimensions Inside The Box:

450mm X 450mmx 450mm

Temperature Range:

-55°C~＋100°C

Temperature Error:

±1°C

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

1 axis rate table with temperature chamber

single-axis temperature-controlled turntable

horizontal rate table with temperature control

Product Description

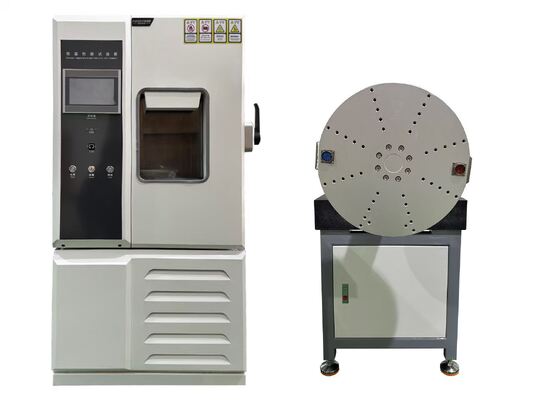

Horizontal 1 Axis Rate Table With Temperature Chamber Single-axis Temperature-controlled Turntable

Product Overview

The horizontal single-axis temperature-controlled turntable is a high-precision specialized device designed for the research, development, testing, production debugging, and maintenance calibration of accelerometers, fiber optic gyroscopes, and inertial measurement units (IMUs). The turntable is mainly used for rate and position function testing and calibration under required temperature and environmental conditions.

This equipment features stable performance, reliable operation, simple operation and low cost. It can also be used for experimental testing of other inertial components and devices.

Technical Specifications

Specification	Value
Load Weight	30Kg
Table Diameter	Ф400mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±2″
Perpendicularity Of Dual-Axia	≤1 GS (10mm to the tabletop)
Positioning Error Of Angular Position	±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	±0.001°/s~±800°/s
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	≥400°/s²
User Slip Ring	Customizable
Temperature Range	-55°C~＋100°C
Temperature Error	±1°C
Temperature Fluctuation	±1°C
Temperature Uniformity	±2°C
Maximum Heating And Cooling Rate	≥3°C/min
Dimensions Inside The Box	450mm x 450mm x 450mm

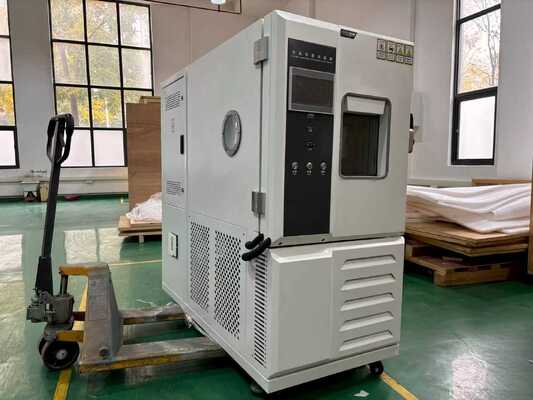

Product Images
