3DT650-A Three Axis Navigation Anti Interference Test Turntable

Name: 3DT650-A Three Axis Navigation Anti Interference Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT650-A
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT650-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Table Diameter:

Ф600mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error Of Angular Position:

±0.1°

User Slip Ring:

Customizable

Maximum Workpiece Size:

Ф600×450

View Angle:

≤15°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Navigation test turntables

Anti Interference test turntables

Three Axis test turntable

Product Description

3DT650-A Three-axis Navigation Anti-interference Test Turntable

Product Description

The three-axis navigation anti-interference test turntable is a device that can rotate on three independent axes (usually pitch, roll and yaw). It is widely used in aerospace, military, scientific research, industrial automation and other fields.

Product Parameters

Specification
1	Load Weight	20Kg
2	Table Diameter	Ф600mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±3″
6	Perpendicularity Of Three-Axis	±3″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±0.1°
9	Rate Range	inner frame:≤3600°/s；
		middle frame:≤20°/s；
		outer frame:≤20°/s；
10	Rotation Range	inner frame:continuous rotation
		middle frame:-90°~+90°
		outer frame:continuous rotation
11	Maximum Angular Acceleration	inner frame:≥60°/s²
		middle frame:≥20°/s²
		outer frame:≥20°/s²
12	User Slip Ring	Customizable
13	Maximum Workpiece Size	Ф600×450
14	View Angle	≤15°

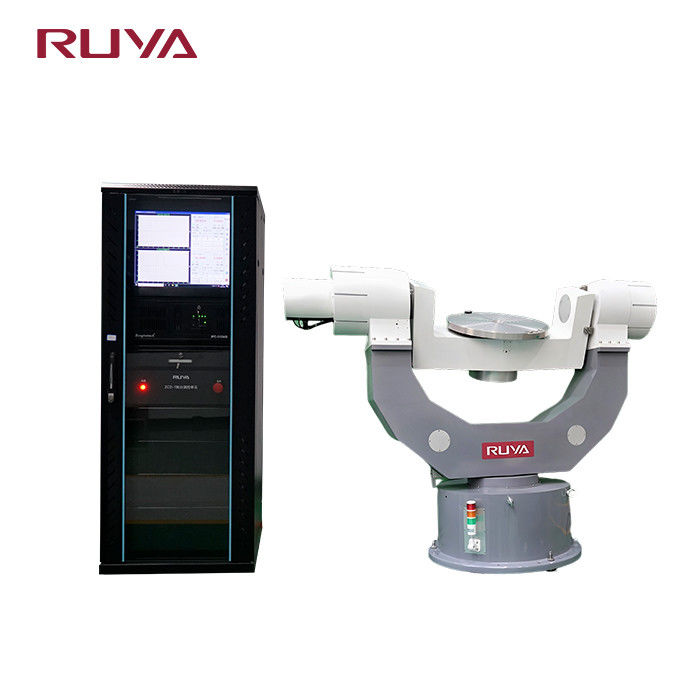

3DT650-A Three Axis Navigation Anti Interference Test Turntable 0

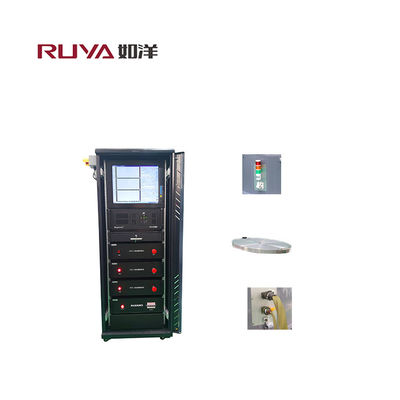

3DT650-A Three Axis Navigation Anti Interference Test Turntable 1
