3DT500-AH 3 Axis Turntable Electric Lifting Turntable

Name: 3DT500-AH 3 Axis Turntable Electric Lifting Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT500-AH
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT500-AH
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Table Diameter:

Ф500mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy Of Three-Axis:

±3″

Perpendicularity Of Three-Axis:

±3″

Positioning Error Of Angular Position:

±5″

Lifting Range:

0~200mm

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

3DT500-AH 3 Axis Turntable

Electric 3 Axis Turntable

3 Axis electric lifting turntable

Product Description

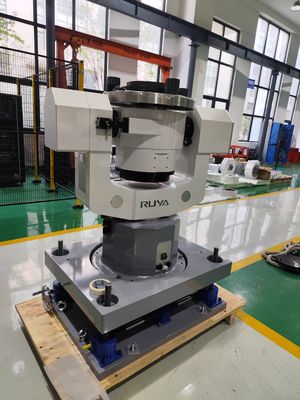

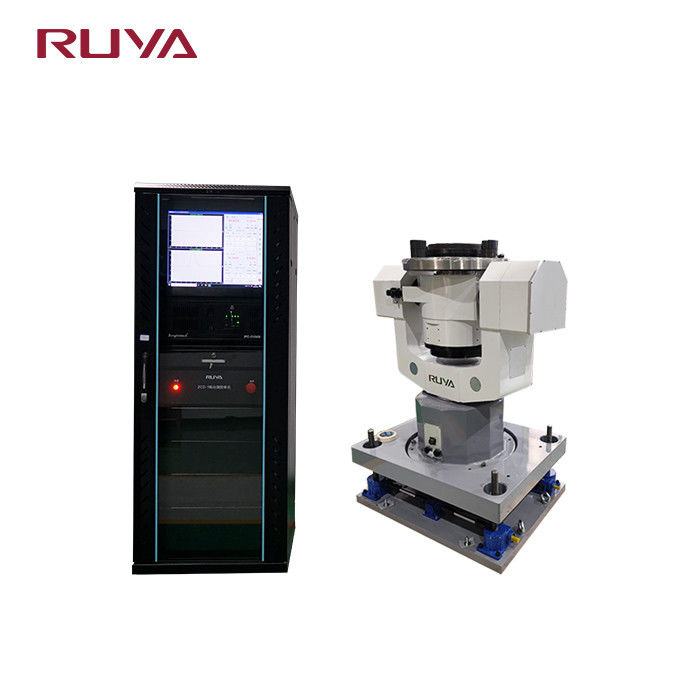

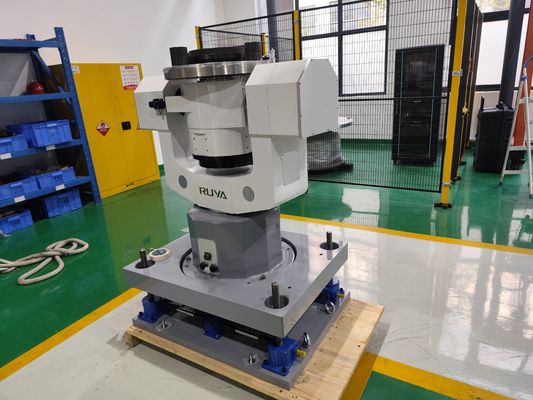

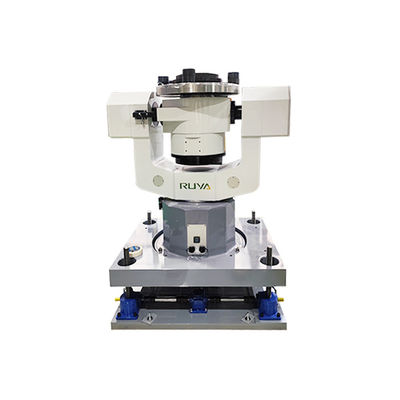

3DT500-AH Three-axis Electric Lifting Turntable

Product Description

The three-axis electric lifting turntable is a high-precision equipment that integrates rotation and lifting functions. It supports three-axis independent motion of pitch, roll and yaw. Combined with the electric lifting module, it can realize multi-dimensional flexible adjustment. It is widely used in aerospace component testing, military target simulation, scientific research experiments, industrial automation and other fields to meet the positioning and motion control needs in complex scenarios. Its high stability, precise response and modular design provide users with efficient and reliable solutions to facilitate precision testing and automated production.

Product Parameters

Specification
1	Load Weight	50Kg
2	Table Diameter	Ф500mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±3″
6	Perpendicularity Of Three-Axis	±3″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±5″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~100°/s；
		middle frame:0.01°/s~100°/s；
		outer frame:0.01°/s~50°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥150°/s²
		middle frame:≥100°/s²
		outer frame:≥50°/s²
13	Lifting Range	0~200mm
14	User Slip Ring	customizable

3DT500-AH 3 Axis Turntable Electric Lifting Turntable 0

3DT500-AH 3 Axis Turntable Electric Lifting Turntable 1
