3DT320-A Small Tabletop Three Axis Electric Inertial Navigation Test Turntable

Name: 3DT320-A Small Tabletop Three Axis Electric Inertial Navigation Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT320-A
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT320-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

15Kg

Table Diameter:

Ф320mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Error( Outer Frame):

±5″

Positioning Error( Inner Frame):

±6″

Intersection Of Three-Axis:

Ф0.5mm Diameter Ball

Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

3DT320-A 3 Axis Turntable

Small Tabletop 3 Axis Turntable

Electric Inertial Navigation Test Turntable

Product Description

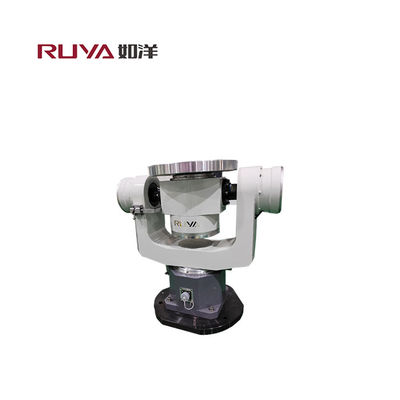

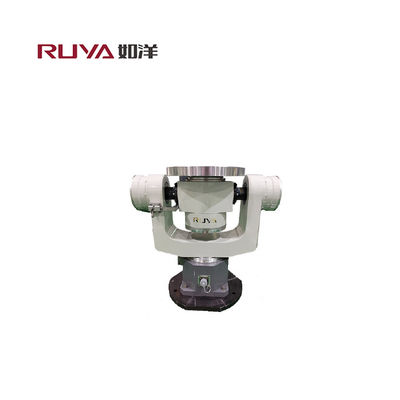

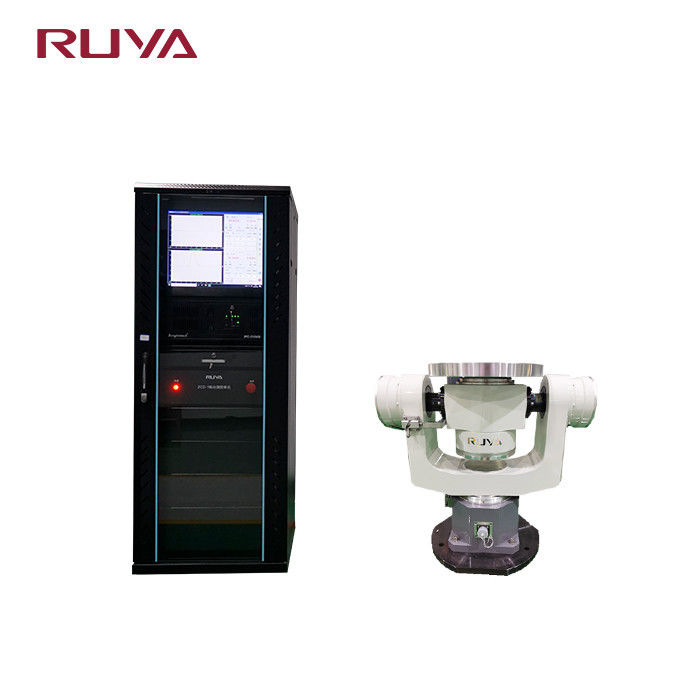

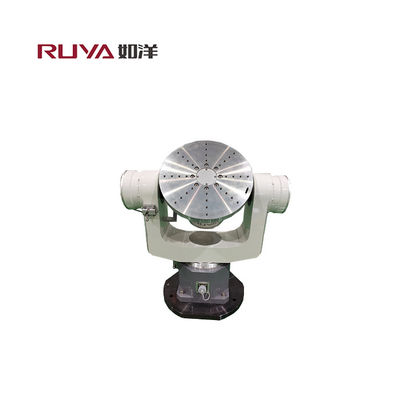

3DT320-A Small Tabletop Three-axis Electric Inertial Navigation Test Turntable

Product Description

The small tabletop three-axis electric turntable is a high-precision, multi-functional three-axis testing equipment. It has functions such as position and rate. It can be used for simulation tests of attitude motion, and can also be used for testing and calibration of inertial combinations and devices.

Product Parameters

Specification
1	Load Weight	15Kg

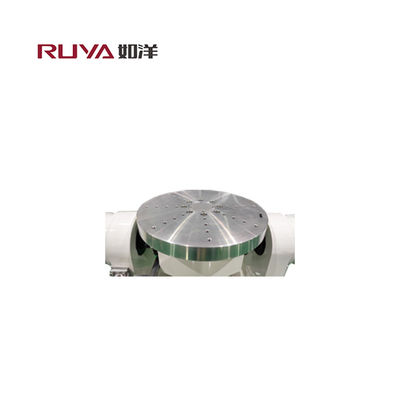

2	Table Diameter	Ф320mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±5″
6	Perpendicularity Of Three-Axis	±6″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±5″
9	Positioning Repeatability Of Angular Position	±5″
10	Rate Range	inner frame:0.01°/s~300°/s；
		middle frame:0.01°/s~200°/s；
		outer frame:0.01°/s~200°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥100°/s²
		middle frame:≥50°/s²
		outer frame:≥50°/s²
13	User Slip Ring	Customizable

3DT320-A Small Tabletop Three Axis Electric Inertial Navigation Test Turntable 0

3DT320-A Small Tabletop Three Axis Electric Inertial Navigation Test Turntable 1
