3DT565-B Three Axis Electric Inertial Navigation Test Turntable

Name: 3DT565-B Three Axis Electric Inertial Navigation Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT565-B
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT565-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Maximum Size Of Test Piece:

400mm×400mm×400mm

Rotary Accuracy Of Three-Axis:

±3″

Perpendicularity Of Three-Axis:

±3″

Positioning Error:

±5″

Positioning Repeatability:

±2″

Intersection Of Three-Axis:

Ф0.5mm Diameter Ball

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Three Axis inertial navigation test turntable

Electric inertial navigation test turntable

3DT565-B test turntable

Product Description

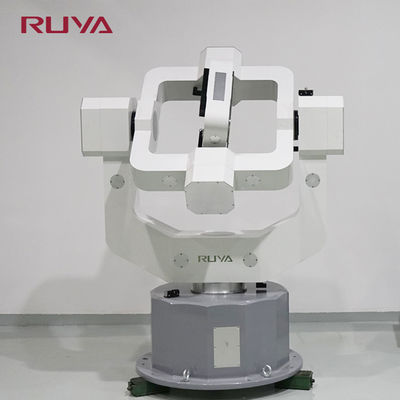

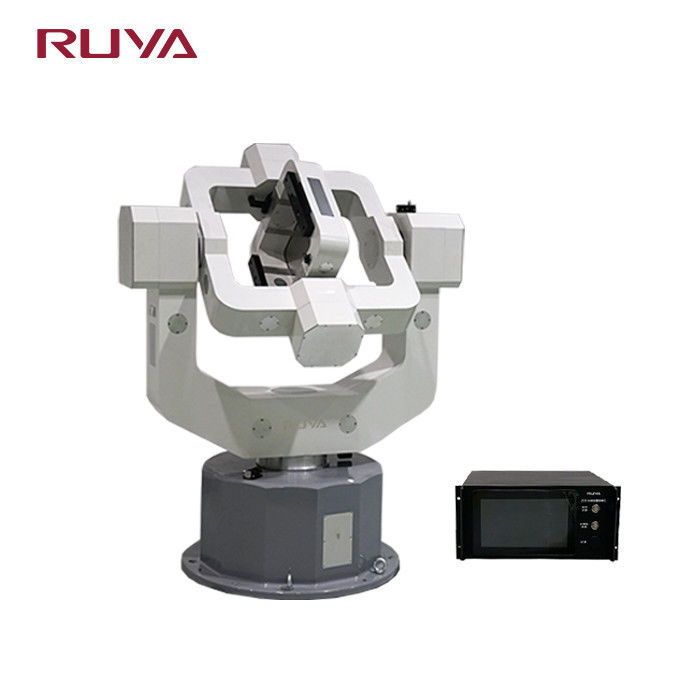

3DT565-B Three-axis Electric Inertial Navigation Test Turntable

Product Description

The three-axis electric turntable is a device that can rotate on three independent axes (usually pitch, roll and yaw). It is widely used in aerospace, military, scientific research, industrial automation and other fields.

Product Parameters

Specification
1	Load Weight	30Kg
2	Maximum size of test piece	400mm×400mm×400mm
3	Rotary Accuracy Of Three-Axis	±3″
4	Perpendicularity Of Three-Axis	±3″
5	Intersection Of Three-Axis	Ф0.5mm diameter ball
6	Positioning Error Of Angular Position	±5″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	inner frame:0.01°/s~200°/s；
		middle frame:0.01°/s~200°/s；
		outer frame:0.01°/s~200°/s；
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
10	Maximum Angular Acceleration	inner frame:≥100°/s²
		middle frame:≥100°/s²
		outer frame:≥50°/s²
11	User Slip Ring	Customizable

3DT565-B Three Axis Electric Inertial Navigation Test Turntable 0

3DT565-B Three Axis Electric Inertial Navigation Test Turntable 1
