3DT400-A Three Axis Electric Turntable With Payload 30kg

Name: 3DT400-A Three Axis Electric Turntable With Payload 30kg
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT400-A
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT400-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф450mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Error Of Angular Position:

±2″

Positioning Repeatability:

±2″

Rate Range(inner):

0.01°/s~300°/s

Rate Range(middle):

0.01°/s~200°/s

Rate Range(outer):

0.01°/s~200°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

3DT400-A 3 Axis Turntable

30kg 3 Axis Turntable

Three Axis Electric Turntable

Product Description

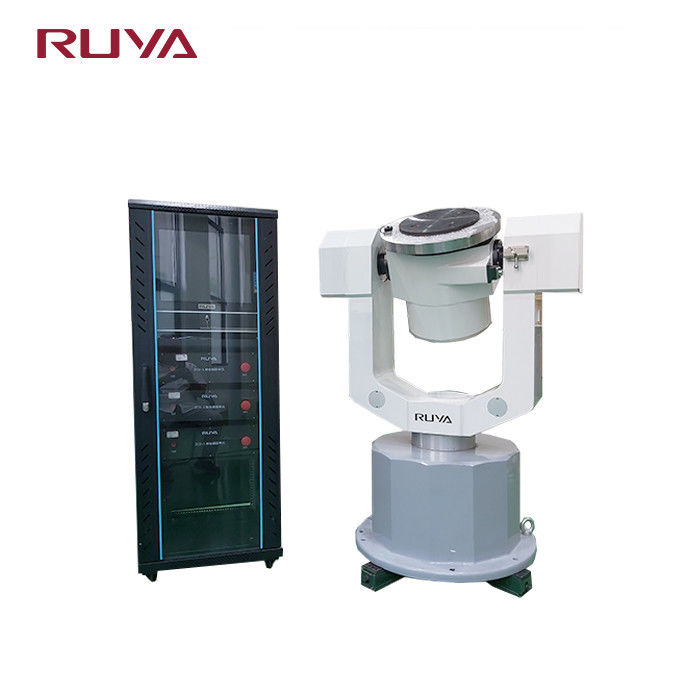

3DT400-A Three-axis Electric Turntable With Payload 30kg

Product Description

The three-axis electric turntable is a high-precision, multi-degree-of-freedom testing equipment with three-axis linkage capabilities of azimuth axis (X), pitch axis (Y) and roll axis (Z), and can accurately simulate complex attitude movements. It adopts a high-performance servo drive system and supports multiple control modes such as position and rate. It is suitable for dynamic performance testing and calibration of inertial navigation systems, aviation guidance equipment and optoelectronic stabilization platforms. Its modular design is compatible with various sensors and loads, and combined with a high-rigidity structure ensures low vibration and high repeatability positioning accuracy, meeting the high-standard testing needs of scientific research institutes and the military industry.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±3″
6	Perpendicularity Of Three-Axis	±3″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~300°/s；
		middle frame:0.01°/s~200°/s；
		outer frame:0.01°/s~200°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥200°/s²
		middle frame:≥100°/s²
		outer frame:≥100°/s²
13	User Slip Ring	Customizable

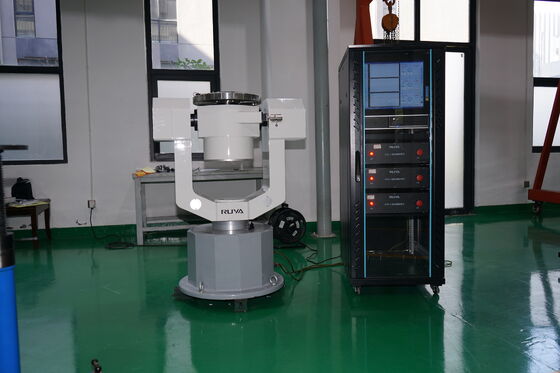

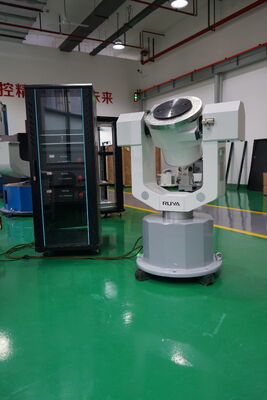

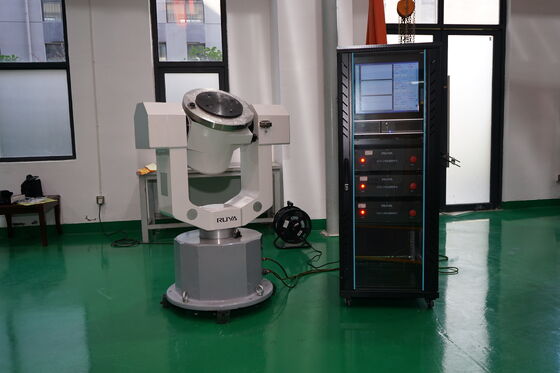

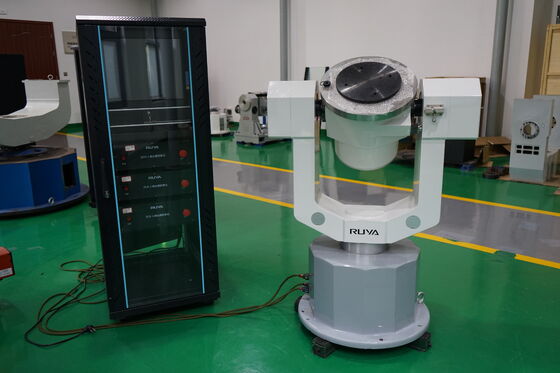

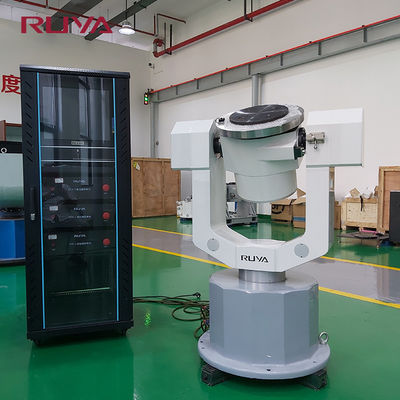

3DT400-A Three Axis Electric Turntable With Payload 30kg 0

3DT400-A Three Axis Electric Turntable With Payload 30kg 1
