2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable

Name: 2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT600GZ
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT600GZ
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Table Diameter:

Ф600mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Error( Outer Frame):

±3″

Positioning Error( Inner Frame):

±2″

Maximum Angular Acceleration（ Inner Frame）:

≥30°/s²

Maximum Angular Acceleration（ Outer Frame）:

≥30°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Tracking 2 axis turntable

Test 2 axis turntable

Inertial Navigation dual axis turntable

Product Description

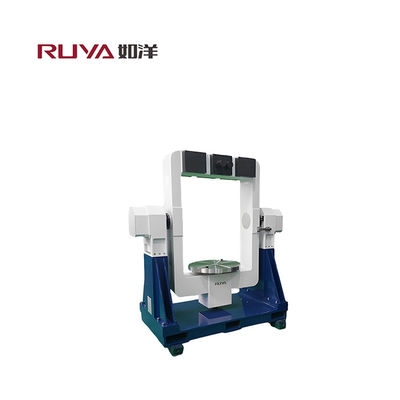

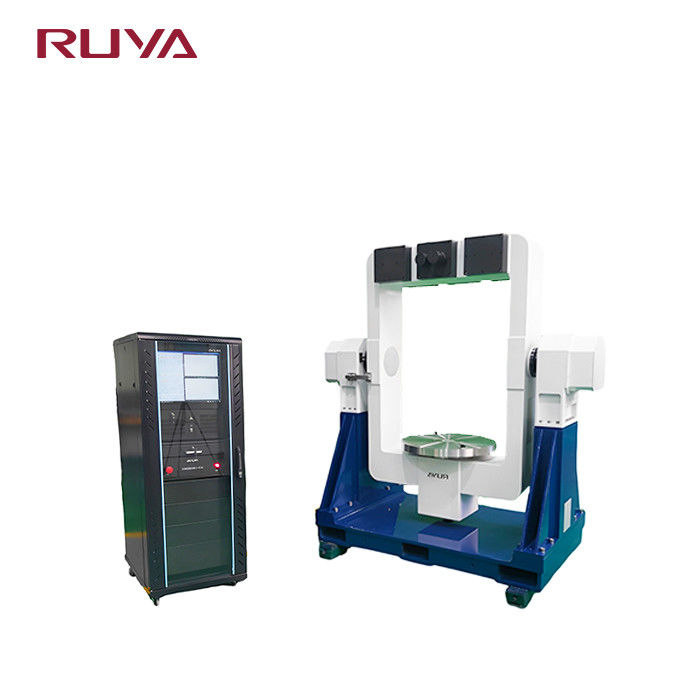

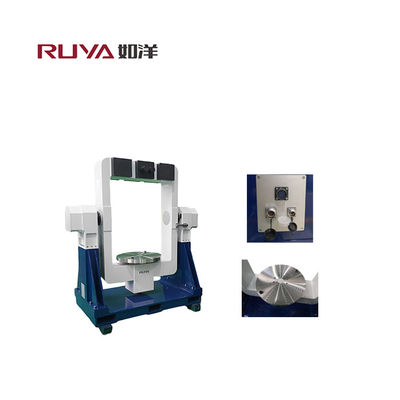

2DT600GZ Dual-axis Tracking Inertial Navigation Test Turntable

Product Description

The dual-axis tracking turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing the position, speed swing, tracking and other functions of precision components and components.

Product Parameters

Specification
1	Load Weight	50Kg

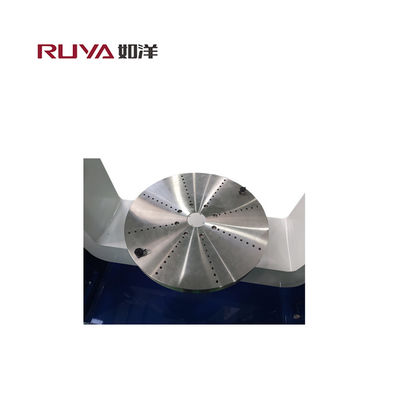

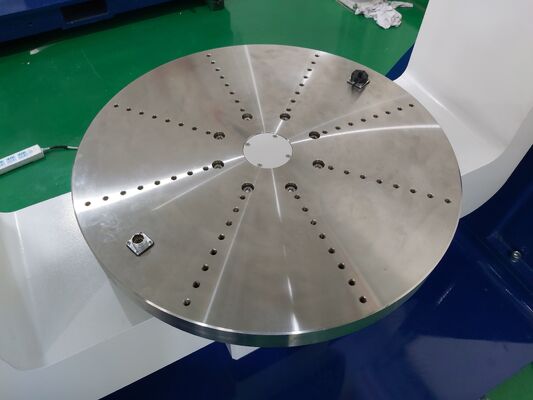

2	Table Diameter	Ф600mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.001°/s~15°/s；
10	Rate Range	outer frame:0.001°/s~15°/s；
11	Angle Rotary Range	outer frame: ±90°
11	Angle Rotary Range	inner frame: ±170°
12	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
13	Maximum Angular Acceleration	inner frame:≥30°/s²；
13	Maximum Angular Acceleration	outer frame:≥30°/s²

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 0

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 1
