2DT450-A Dual Axis Electric Rate Positioning Turntables

Name: 2DT450-A Dual Axis Electric Rate Positioning Turntables
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT450-A
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT450-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф400mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Weight:

≤750Kg

Table Body Dimensions:

1320×700×960 Mm

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Dual Axis positioning turntables

Electric Rate positioning turntables

2DT450-A electric positioning turntables

Product Description

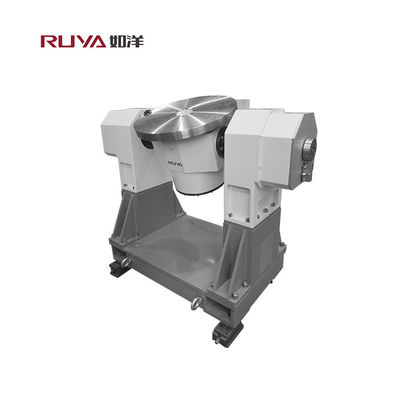

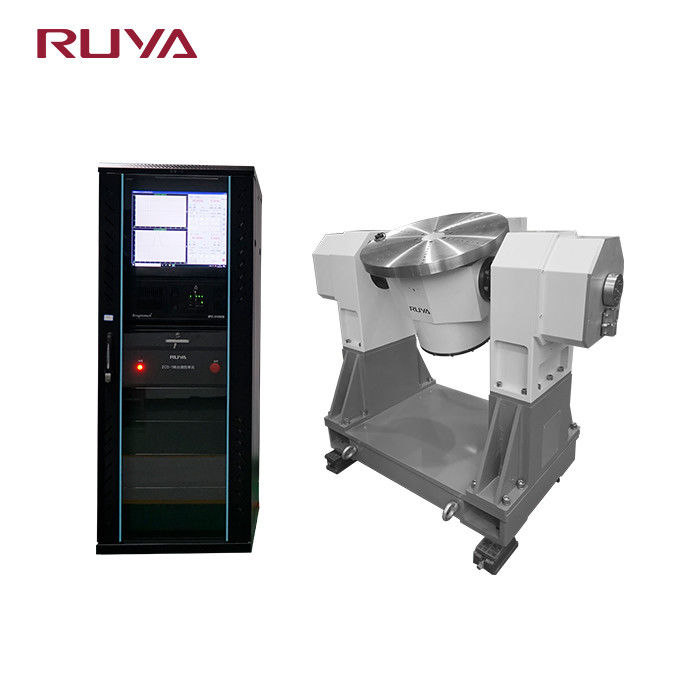

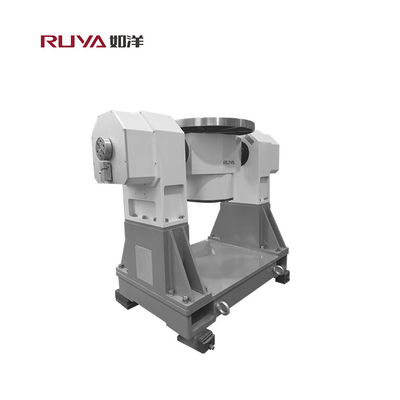

2DT450-A Dual-axis Electric Rate Position Turntable

Product Description

The dual-axis electric turntable integrates the azimuth axis and the pitch axis, provides fully automatic high-precision motion control, and is widely used in performance testing of aerospace, photoelectric detection and guidance systems. The tabletop is compatible with a variety of fixtures, suitable for parts under test of different sizes, and can effectively complete rate swing, dynamic tracking and environmental adaptability tests, helping to improve product reliability and testing efficiency.

Product Parameters

Specification
1	Load Weight	30Kg

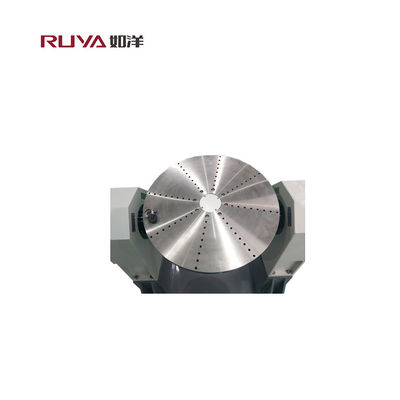

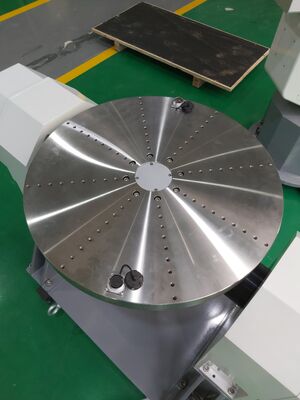

2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″；
8	Positioning Error Of Angular Position	inner frame:±3″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~800°/s；
10	Rate Range	outer frame:0.01°/s~300°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥200°/s²
12	Maximum Angular Acceleration	outer frame:≥100°/s²
13	User Slip Ring	Customizable
14	Weight	≤750Kg
15	Table body dimensions	1320×700×960 mm

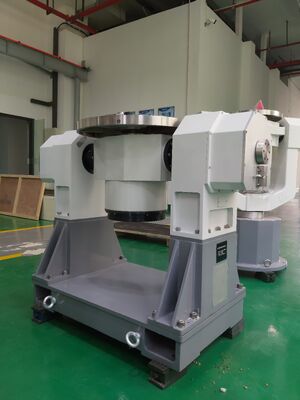

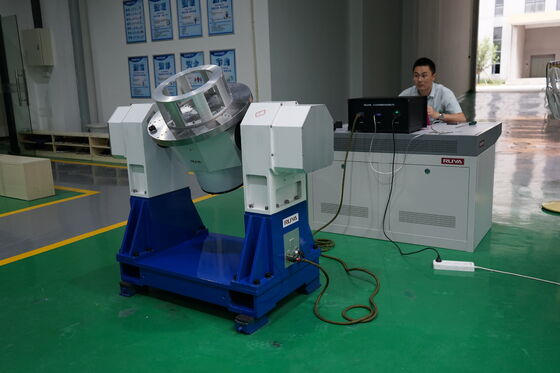

2DT450-A Dual Axis Electric Rate Positioning Turntables 0

2DT450-A Dual Axis Electric Rate Positioning Turntables 1
