2DT400-A02 Electric Dual Axis Turntable Inner Ring High Speed

Name: 2DT400-A02 Electric Dual Axis Turntable Inner Ring High Speed
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400-A02
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400-A02
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

15Kg

Table Diameter:

Ф400mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Intersection:

Ф0.5mm Diameter Ball

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Weight:

≤200Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Electric dual axis turntable

2DT400-A02 dual axis turntable

High Speed 2 axis turntable

Product Description

2DT400-A02 Dual-axis Inner Ring High-speed Electric Turntable

Product Description

The dual-axis inner ring high-speed electric turntable is a high-precision two-dimensional motion testing equipment equipped with dual degrees of freedom in the azimuth axis (X) and pitch axis (Y), which can realize continuous rotation and large-angle pitch adjustment. It adopts a precision servo drive system with high rigidity and low friction characteristics to ensure smooth operation and precise positioning. It is suitable for dynamic performance verification in inertial navigation, photoelectric tracking, radar testing and other fields. The table has strong load capacity, supports customized design, and meets the swing, rate tracking and position stability testing needs of various precision components. It is an ideal platform for scientific research and industrial testing.

Product Parameters

Specification
1	Load Weight	15Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″
8	Positioning Error Of Angular Position	inner frame:±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~3600°/s；
10	Rate Range	outer frame:0.01°/s~400°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥200°/s²
12	Maximum Angular Acceleration	outer frame:≥100°/s²
13	User Slip Ring	Customizable
14	Weight	≤200Kg

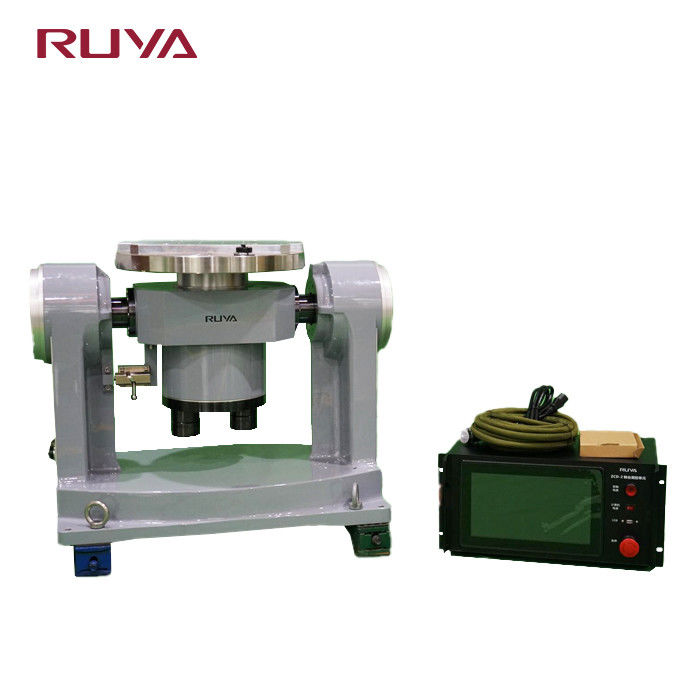

2DT400-A02 Electric Dual Axis Turntable Inner Ring High Speed 0

2DT400-A02 Electric Dual Axis Turntable Inner Ring High Speed 1
