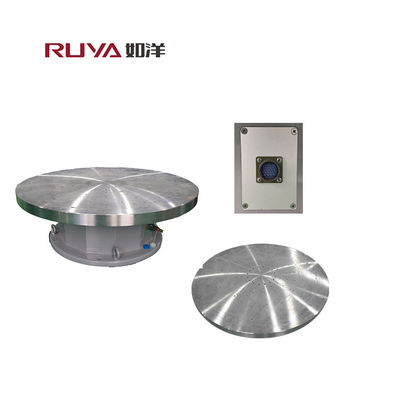

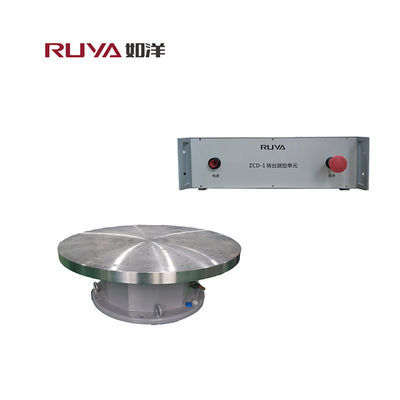

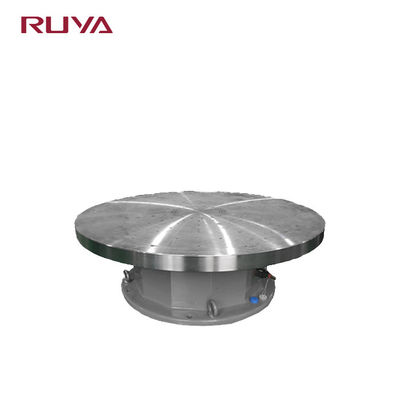

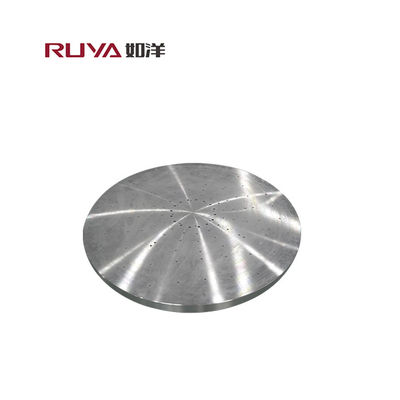

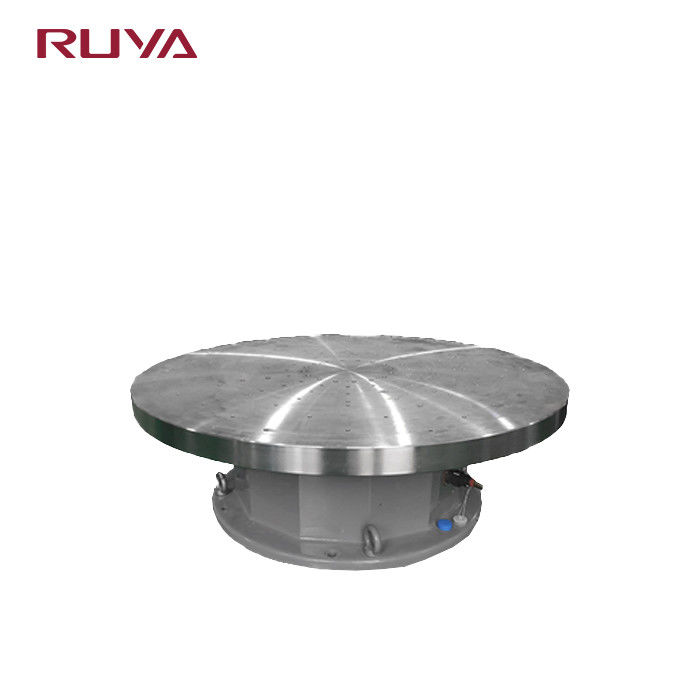

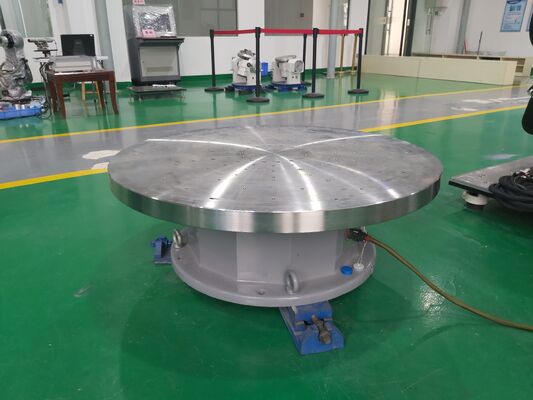

DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables

Name: DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT1000-A
Availability: InStock

Brand Name:	RUYA
Model Number:	DT1000-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

300KG

Table Diameter:

Ф1000mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Rate Range:

±0.0001°/s~±1000°/s

Maximum Angular Acceleration:

≥100°/s²

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Single Axis positioning turntables

300kg positioning turntables

Big electric positioning turntables

Product Description

DT1000-A Big Size Single-axis Payload 300kg Electric Rate Position Turntable

Product Description

DT1000-A single-axis electric rate position turntable is a single-axis table-type mechanical shaft system structure. It is mainly used for testing inertial components such as gyroscopes and accelerometers. It has multiple functions such as position and speed, and can automatically control the turntable and collect data.

Product Parameters

Specification
1	Load Weight	300Kg
2	Table Diameter	Ф1000mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±1000°/s
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
10	Maximum Angular Acceleration	≥100°/s²
11	User Slip Ring	Customizable

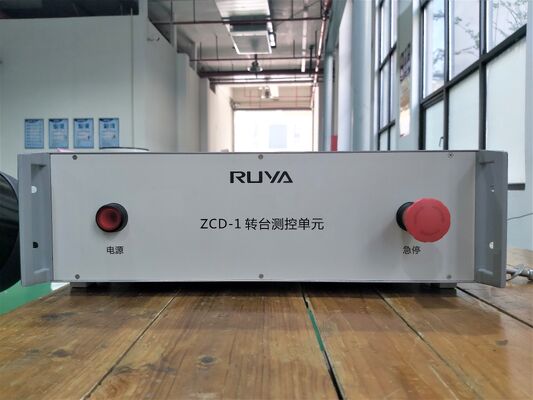

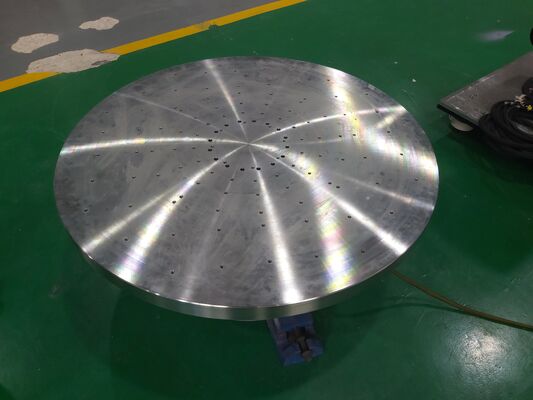

DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables 0

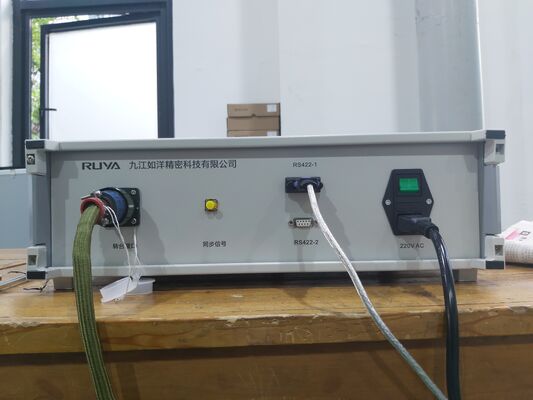

DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables 1
