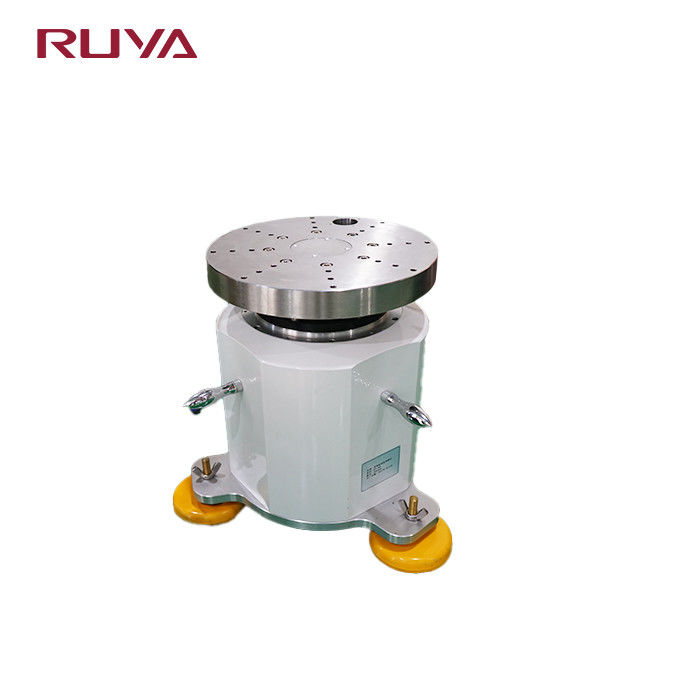

DT300-A Single Axis Electric Rate Position Test Turntable 300mm

Name: DT300-A Single Axis Electric Rate Position Test Turntable 300mm
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT300-A
Availability: InStock

Brand Name:	RUYA
Model Number:	DT300-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30KG

Table Diameter:

Ф300mm

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±1000°/s

Maximum Angular Acceleration:

≥300°/s²

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Test Turntable Single Axis

DT300-A Test Turntable

300mm test turntables

Product Description

DT300-A Single-axis Electric Rate Position Test Turntable

Product Description

This high-load single-axis electric rate position turntable is specially designed for testing heavy inertial components. It supports a load of 30kg and is suitable for a 300mm table. It meets the high-precision calibration needs of fiber optic gyroscopes, IMUs and various inertial devices. It has a compact structure and enhanced rigidity, taking into account large load capacity and portability, and is suitable for laboratory, production line and field calibration scenarios. The standard intelligent control interface is easy to operate and has outstanding cost performance. It is an ideal solution for industrial-grade inertial testing.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф300mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±1000°/s
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
10	Maximum Angular Acceleration	≥300°/s²
11	User Slip Ring	Customizable

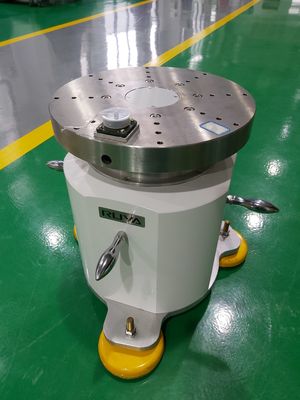

DT300-A Single Axis Electric Rate Position Test Turntable 300mm 0

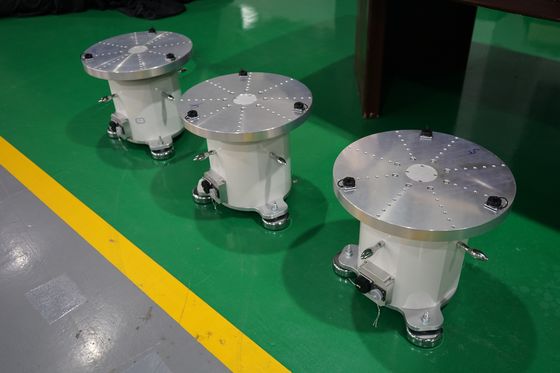

DT300-A Single Axis Electric Rate Position Test Turntable 300mm 1
