DT200-C Payload 15kg Single Axis Inertial Navigation Test Turntable

Name: DT200-C Payload 15kg Single Axis Inertial Navigation Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT200-C
Availability: InStock

Brand Name:	RUYA
Model Number:	DT200-C
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

15KG

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±200°/s

Rate Resolution:

0.0001°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

15kg inertial navigation test turntable

DT200-C inertial navigation test turntable

Single Axis inertial navigation turntable

Product Description

DT200-C Payload 15kg Single-axis Inertial Navigation Test Turntable

Product Description

A certain equipment needs to be calibrated and tested, and a single-axis test turntable system needs to be configured. The base of the single-axis test turntable is required to be fixed on a vertical steel pipe, and the height of the turntable can be adjusted up and down along the steel pipe. Single-axis turntables are mainly used for angle calibration measurements, including turntable equipment and corresponding control software. In order to facilitate the use of the turntable control software, it is suitable for Windows 7 and above versions, and has computer automatic control, data acquisition, processing and display functions. Users can set operating modes, control parameters, speed and acceleration protection thresholds and other functions.

Product Parameters

Specification
1	Load Weight	15Kg
2	Table Diameter	Ф200mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±200°/s
9	Rate Resolution	0.0001°/s
10	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
11	Maximum Angular Acceleration	≥100°/s²
12	User Slip Ring	Customizable

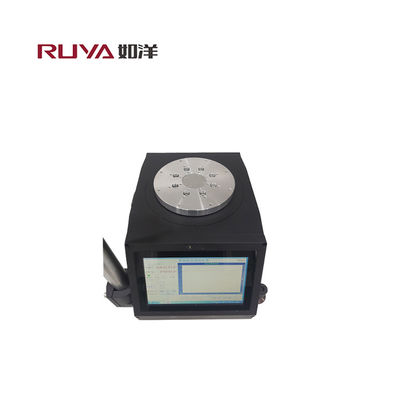

DT200-C Payload 15kg Single Axis Inertial Navigation Test Turntable 0

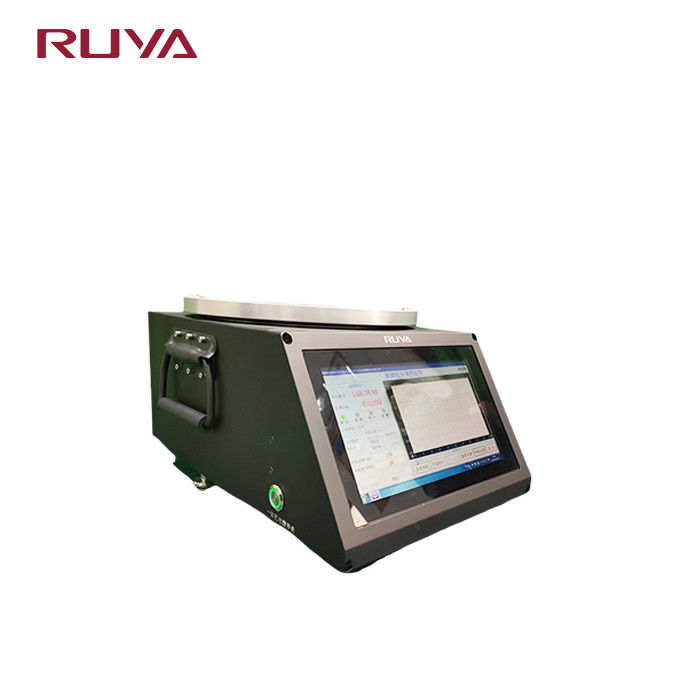

DT200-C Payload 15kg Single Axis Inertial Navigation Test Turntable 1
