RY-6ZA01 RY-6JA01 Integrated Series Circular Induction Synchronizer

Name: RY-6ZA01 RY-6JA01 Integrated Series Circular Induction Synchronizer
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RY-6ZA01, RY-6JA01
Availability: InStock

Brand Name:	RUYA
Model Number:	RY-6ZA01, RY-6JA01
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Angular Resolution:

0.36″

Repeatability:

0.72″

Electrical Allowed Rotary Speed:

Maximum 400rpm

Physical Rotary Speed:

Maximum 10000rpm

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

RY-6ZA01 Rotary Inductosyn

Integrated Series Rotary Inductosyn

Circular Induction Synchronizer

Product Description

RY-6ZA01 RY-6JA01 Integrated Series Circular Induction Synchronizer

Product Description

The All-in-One intelligent measurement unit integrates sensors and calculation circuits to directly output digital signals such as SSI/BISS.

Features:

Plug and play: eliminating the need for external signal conditioning

Heavy-duty design: IP67 protection level, vibration resistance 5g

Maintenance costs reduced by 70%: no contact wear design

It is especially suitable for absolute position detection of very large rotary bodies such as wind power yaw systems and shield machine cutterheads. It can still ensure a repeatable positioning accuracy of 0.5 arc seconds in a wide temperature environment of -40°C to 85°C.

Product parameters

Model	RY-6ZA01	RY-6JA01
Accuracy	±3″	±2″
Angular Resolution	0.36″	0.36″
Repeatability	0.72″	0.72″
Electrical Allowed Rotary Speed	maximum 400rpm	maximum 400rpm
Physical Rotary Speed	maximum 10000rpm	maximum 10000rpm
Output Angle Mode	incremental angle data	absolute angle data
Interface Form	connector/OLED display	connector
Interface Protocol	BISS_C / ENDAT / SPI / Customized	BISS_C / ENDAT / SPI / Customized
Diameter	50-350mm	50-350mm
Thickness	16-25mm; can be customized	16-25mm; can be customized
Power Supply	DC5V or 9~36VDC	DC5V or 9~36VDC
Working Temperature	-40℃～+85℃	-40℃～+85℃

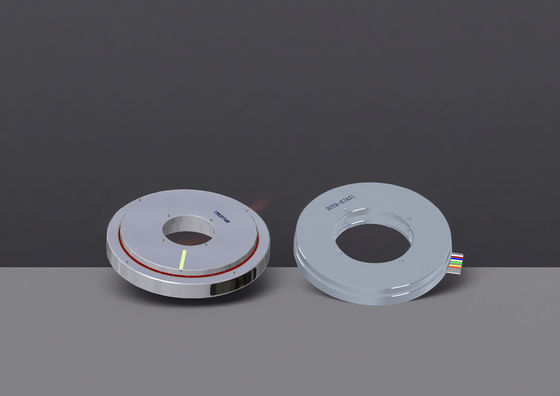

RY-6ZA01 RY-6JA01 Integrated Series Circular Induction Synchronizer 0

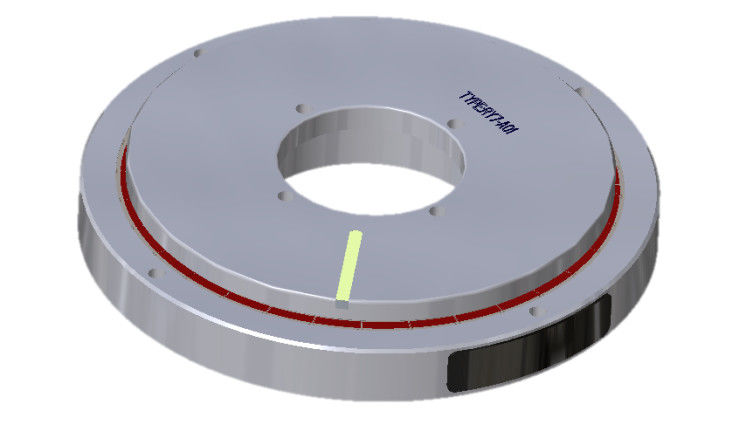

RY-6ZA01 RY-6JA01 Integrated Series Circular Induction Synchronizer 1
