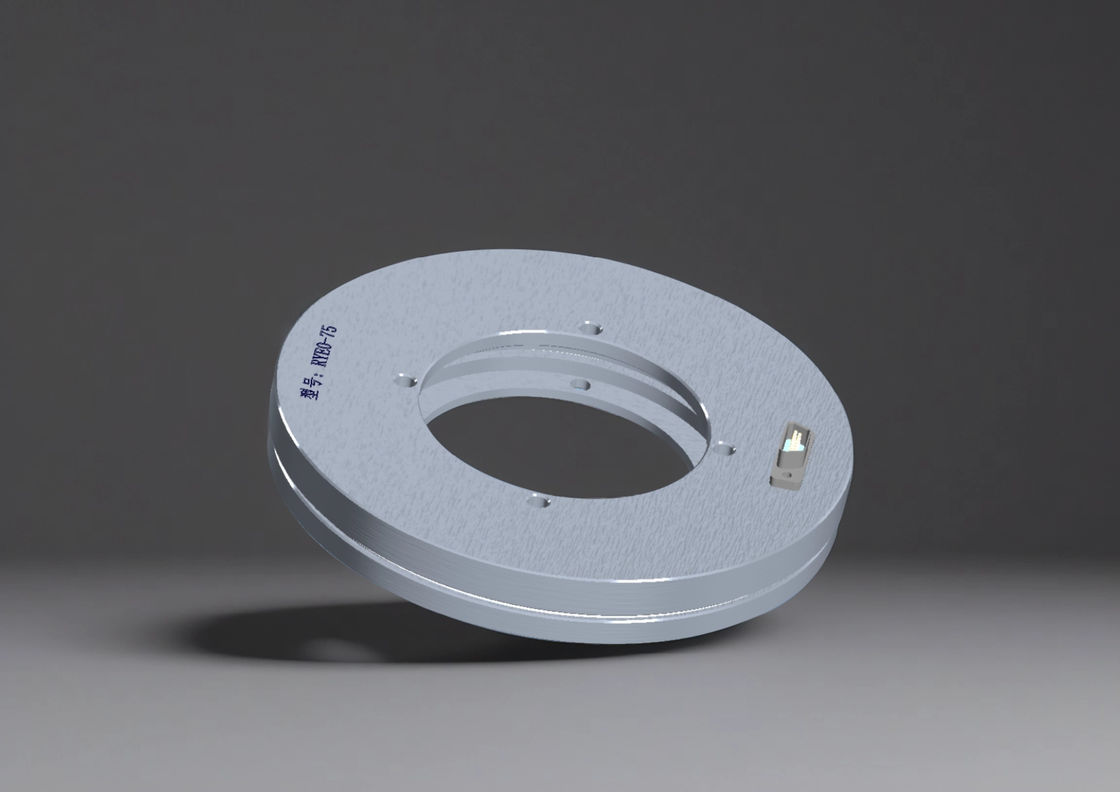

RYEO-75 Inductor Series Circular Induction Synchronizer

Name: RYEO-75 Inductor Series Circular Induction Synchronizer
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RYEO-75
Availability: InStock

Brand Name:	RUYA
Model Number:	RYEO-75
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Accuracy:

±15′

Repeatability:

9′

Electrical Allowed Rotary Speed:

Maximum 6000rpm

Physical Rotary Speed:

Maximum 10000rpm

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

RYEO-75 Rotary Inductosyn

Inductor Series Rotary Inductosyn

Circular Induction Synchronizer

Product Description

RYEO-75 Inductor Series Circular Induction Synchronizer

Product Overview

The RYEO-75 Inductor Series Circular Induction Synchronizer features an exclusive printed winding process and achieves μA-level ultra-low power consumption with nV-level noise suppression through innovative shielding structure and electromagnetic coupling optimization technology.

Compact outer diameter design: Φ65mm-325mm
Excellent performance in space-constrained applications
Typical resolution: 0.36 arc seconds (1/10,000 degree)
Multi-pole logarithmic customized design capability
Zero backlash angle feedback solutions

Applications

Ideal for semiconductor lithography machines, high-precision turntables, CNC machine tools, articulated arms, and other equipment requiring precise torque/speed matching and zero backlash angle feedback solutions.

Technical Specifications

Parameter	Specification
Model	RYEO-75
Accuracy	±15′
Repeatability	9′
Electrical Allowed Rotary Speed	Maximum 6000rpm
Physical Rotary Speed	Maximum 10000rpm
Output Mode	Analog quantity, equipped with circuit board to output angle data
Interface Form	Connector/wire
Interface Protocol	BISS_C / ENDAT / SPI / Customized
Diameter	50-350mm
Thickness	10-25mm; can be customized
Power Supply	±5VDC
Working Temperature	-25℃～+75℃
