RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference

Name: RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RYS7-720
Availability: InStock

Brand Name:	RUYA
Model Number:	RYS7-720
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Accuracy:

±2″

Repeatability:

0.72″

Electrical Allowed Rotary Speed:

Maximum 400rpm

Physical Rotary Speed:

Maximum 10000rpm

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

RYS7-720 Rotary Inductosyn

Split Series Rotary Inductosyn

Circular Rotary Inductosyn

Product Description

RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn

Product Overview

The RYS7-720 Split Series Circular Induction Synchronizer features an innovative modular architecture that separates the stator/rotor design, breaking through traditional installation limitations and enabling quick disassembly and maintenance in just 3 minutes.

Key Features

Anti-electromagnetic interference enhanced design
Maintains absolute accuracy of ±1 arc second in strong magnetic field environments (no software compensation)
Verified in high-grade environments including extreme temperature, vacuum compatibility, and three-proof enhanced versions
Optional dual-channel redundant output for highly reliable applications
Quick 3-minute disassembly and maintenance capability

Environmental Specifications

Extreme temperature version: Continuous operation at -55℃ to +125℃
Vacuum compatible version: 10⁻⁶Pa level vacuum
Three-proof enhanced version: Passed 96h salt spray test

Applications

Ideal for key areas requiring high reliability including aerospace actuators and satellite attitude control systems.

Technical Parameters

Parameter	Specification
Model	RYS7-720
Accuracy	±2″
Angular Resolution	0.36″
Repeatability	0.72″
Electrical Allowed Rotary Speed	Maximum 400rpm
Physical Rotary Speed	Maximum 10000rpm
Output Mode	Analog quantity, equipped with circuit board to output angle data
Interface Form	Connector/wire
Interface Protocol	BISS_C / ENDAT / SPI / Customized
Diameter	50-350mm
Thickness	10-25mm; can be customized
Power Supply	9~36VDC
Working Temperature	-50℃～+120℃

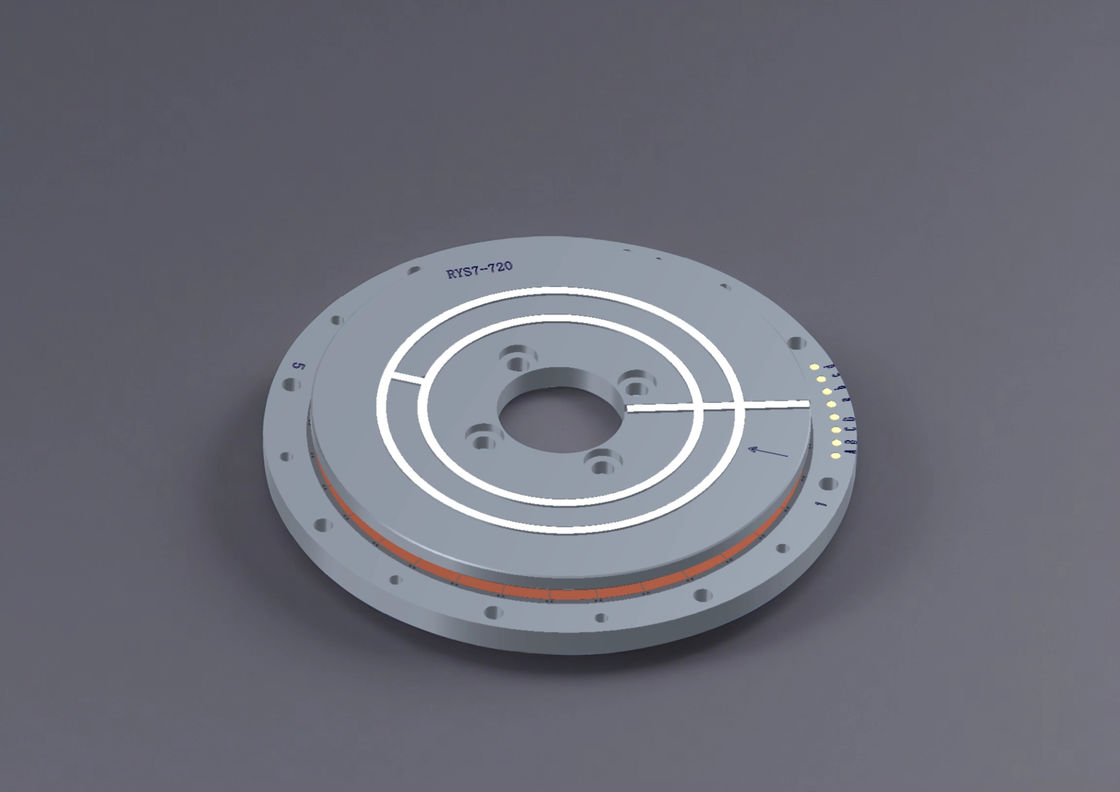

Product Images
