RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn

Name: RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RYS7-720
Availability: InStock

Brand Name:	RUYA
Model Number:	RYS7-720
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Accuracy:

±2″

Repeatability:

0.72″

Electrical Allowed Rotary Speed:

Maximum 400rpm

Physical Rotary Speed:

Maximum 10000rpm

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

RYS7-720 Rotary Inductosyn

Split Series Rotary Inductosyn

Circular Rotary Inductosyn

Product Description

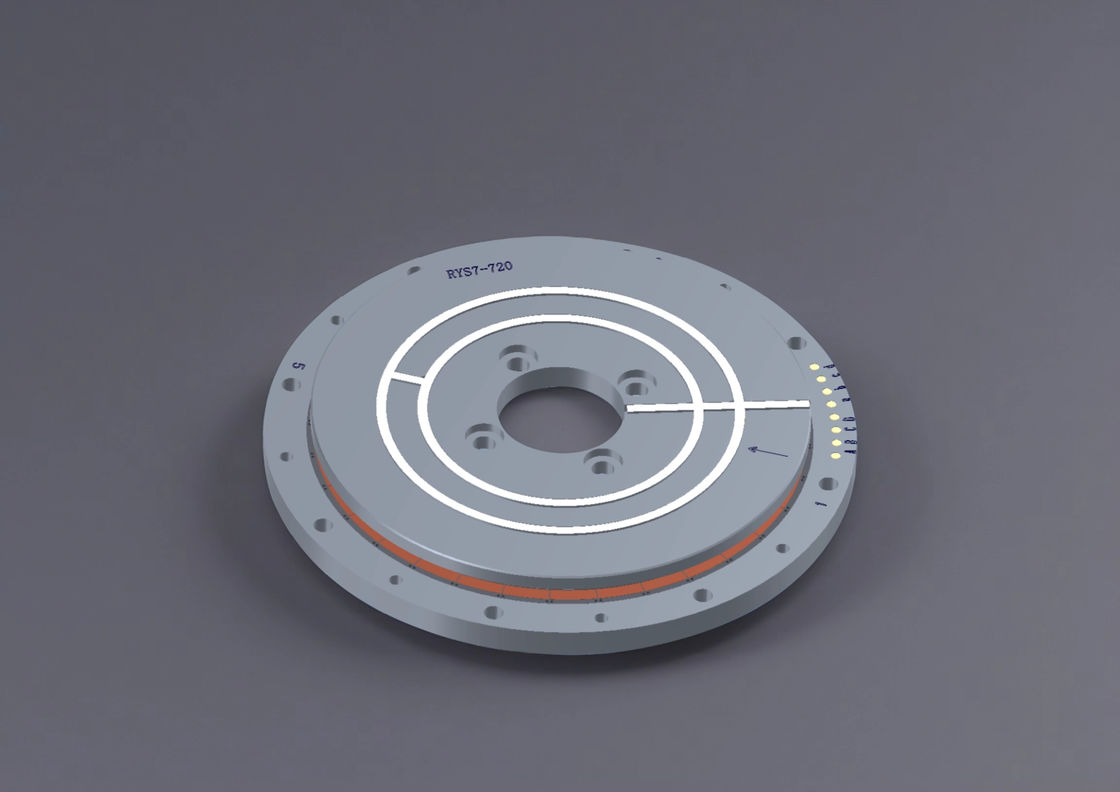

RYS7-720 Split Series Circular Induction Synchronizer

Product Description

The innovative modular architecture separates the stator/rotor design, breaking through the limitations of traditional installation and enabling quick disassembly and maintenance in 3 minutes. It adopts anti-electromagnetic interference enhanced design and still maintains an absolute accuracy of ±1 arc second in a strong magnetic field environment (no software compensation).

Verified in military-grade environment:

Extreme temperature version (continuous operation at -55℃~+125℃)

Vacuum compatible version (10⁻⁶Pa level vacuum)

Three-proof enhanced version (passed 96h salt spray test)

Optional dual-channel redundant output has become a highly reliable standard solution in key areas such as aerospace actuators and satellite attitude control.

Product parameters

Model	RYS7-720
Accuracy	±2″
Angular Resolution	0.36″
Repeatability	0.72″
Electrical Allowed Rotary Speed	maximum 400rpm
Physical Rotary Speed	maximum 10000rpm
Output Mode	analog quantity, equipped with circuit board to output angle data
Interface Form	connector/wire
Interface Protocol	BISS_C / ENDAT / SPI / Customized
Diameter	50-350mm
Thickness	10-25mm; can be customized
Power Supply	9~36VDC
Working Temperature	-50℃～+120℃

RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn 0

RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn 1
