Articulated Arm Coordinate Measuring Machine

Portable CMM RA520 High Precision 0.045mm 3D Measuring Arm with Aeronautical Carbon Fiber

Name: Portable CMM RA520 High Precision 0.045mm 3D Measuring Arm with Aeronautical Carbon Fiber
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RA520
Availability: InStock

Brand Name:	RUYA
Model Number:	RA520
MOQ:	1 pc
Price:	negotiable
Delivery Time:	5-10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Accuracy:

0.045mm

Repeatability:

0.032mm

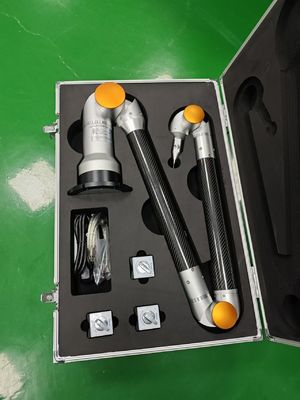

Packaging Details:

Flight case + Wooden box

Supply Ability:

1-10 pieces，2 weeks

Highlight:

3D Measuring Arm Portable CMM

Portable Articulated Arm Coordinate Measuring Machine

High Precision Articulated Arm Coordinate Measuring Machine

Product Description

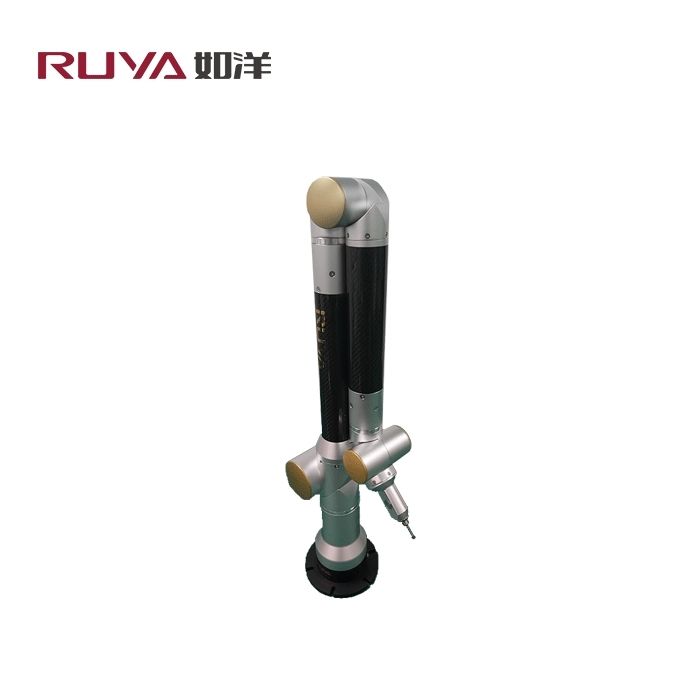

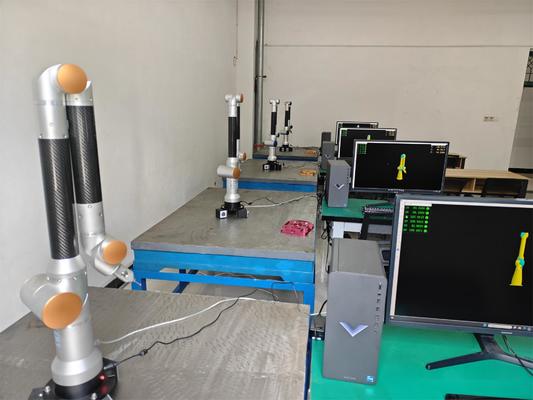

Portable CMM RA520 High Precision 3D Measuring Arm

Product Overview

The RA520 Portable CMM is an articulated arm coordinate measuring machine designed for high-precision 3D measurement applications. This portable solution offers exceptional accuracy and flexibility for various industrial measurement needs.

Key Features

Absolute high-precision encoder ensures instrument accuracy and stability with no startup homing required
High-quality conductive slip rings allow infinite rotation in all joints
Simple USB cable connection for easy computer integration
Wide working temperature range (10°C-40°C) for reliable operation
Aeronautical carbon fiber tube arm body - lightweight (only 7Kg) with minimal deformation
Standard mold-manufactured joints provide high stability during operation
Optional battery module enables on-site measurement without external power
Compatible with full range of Renishaw probes and multiple mounting components
Multiple installation methods: tripod, magnetic base, U-shaped clips for rapid on-site measurement

Measurement Capabilities

Geometric Feature Detection

Measure geometric features on workpieces
Generate new features through projection and intersection of existing geometric features
Quickly analyze spatial dimensions including distances and angles
Custom coordinate systems through points, lines, and surfaces
Linear dimension marking capabilities

GD&T Geometric Tolerance Detection

The measurement software provides comprehensive GD&T tools for evaluating form and position tolerances including verticality, parallelism, flatness, cylindricity, coaxiality, inclination, and position.

3D Model Comparison

Software compatibility with multiple 3D data formats and coordinate alignment methods. Automatically compares measured geometric features and surface point data with theoretical values on 3D models, providing comprehensive error analysis graphic reports.

Test Reporting

Quick output of test reports in PDF, Excel, and MHT formats. Powerful report customization functionality with convenient, fast output featuring comprehensive documentation.

Application Fields

Automobile production lines, aerospace, shipbuilding, inspection fixture manufacturing, mold manufacturing, and various industrial measurement applications.

Product Specifications

Model	Spatial Measurement Range	Space-length Indication Error	Uniaxial Coordinate Measurement Consistency
RA515	1.5m	0.035mm	0.025mm
RA520	2.0m	0.045mm	0.032mm
RA525	2.5m	0.060mm	0.035mm
RA530	3.0m	0.080mm	0.056mm
RA535	3.5m	0.100mm	0.071mm
