High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing

Brand Name: RUYA
Model Number: 2DT400WK
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Load Weight:
30Kg
Table Diameter:
Ф400mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Positioning Repeatability:
±2″
User Slip Ring:
Customizable
Temperature Range:
-55°C~＋100°C
Maximum Heating And Cooling Rate:
≥3°C/min
Packaging Details:
wooden box
Supply Ability:
≤3 sets，4 months
Highlight:

Fiber Optic Gyroscope IMU Testing Turntable

,

2 Axis IMU Testing Turntable

,

2 Axis Temperature-controlled Turntable

Product Description
2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable
Product Overview

The dual-axis temperature-controlled turntable designed for fiber optic gyroscope and IMU testing combines high precision, stability and ease of operation to meet the full process requirements of research and testing, production commissioning, and maintenance and calibration.

The equipment supports rate and position function testing, has reliable performance, outstanding cost-effectiveness, and significantly reduces user investment costs. At the same time, its universal design is also suitable for test scenarios of various inertial components and devices, providing a flexible and efficient test platform for scientific research institutes and enterprises.

Choose a dual-axis temperature-controlled turntable to make precision testing simpler and more economical!

Technical Specifications
Specification Details
Load Weight 30Kg
Table Diameter Ф400mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position outer frame: ±3″
inner frame: ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range inner frame: 0.01°/s~800°/s
outer frame: 0.01°/s~200°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration inner frame: ≥400°/s²
outer frame: ≥50°/s²
User Slip Ring Customizable
Temperature Range -55°C~＋100°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 450mm x 450mm x 450mm

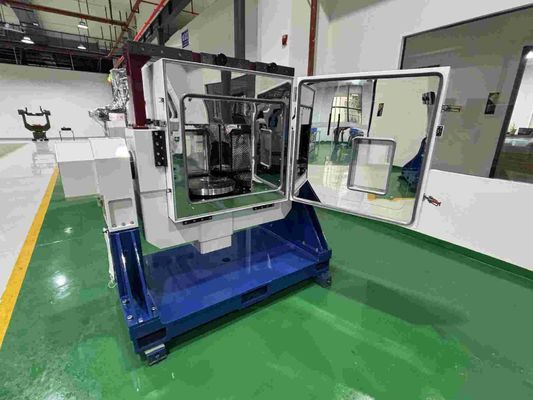

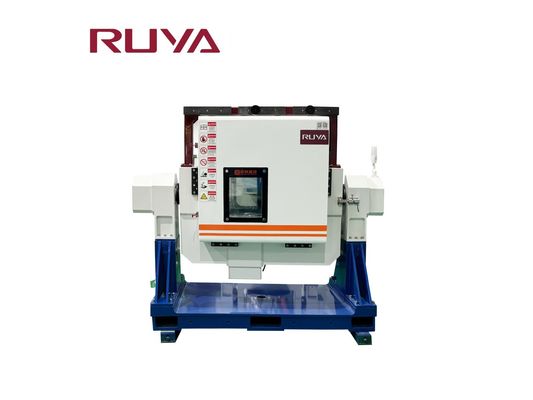

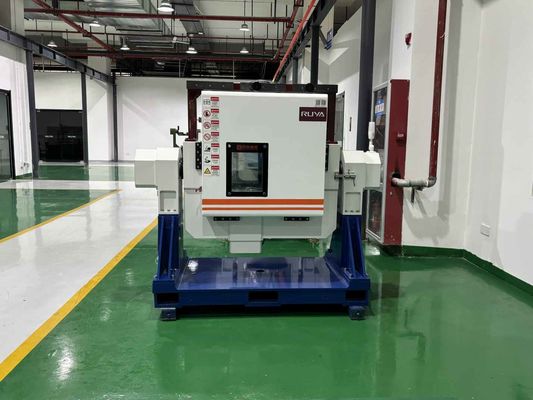

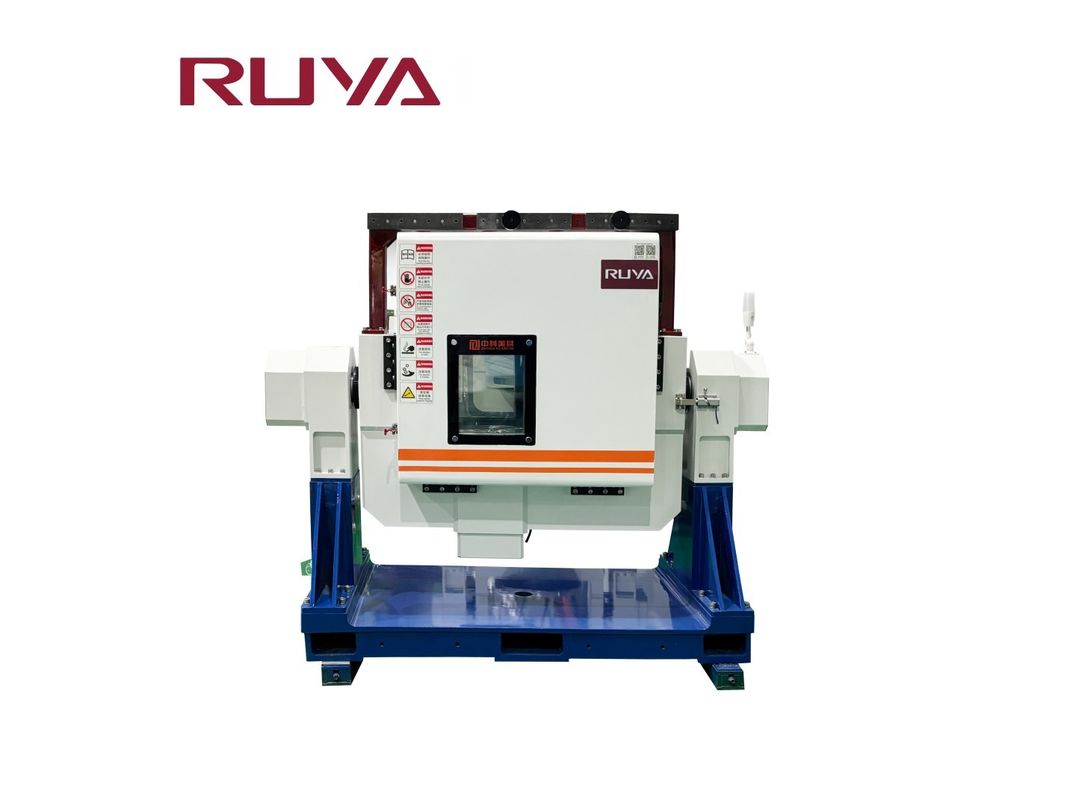

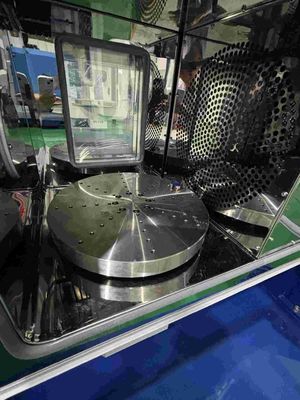

Product Images
High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 0 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 1 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 2 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 3 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 4 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 5 High Precision Temperature-controlled Dual-Axis Turntable with 30Kg Load Capacity for IMU and Gyroscope Testing 6
