2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable

Name: 2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400WK
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Temperature Range:

-55°C~＋100°C

Maximum Heating And Cooling Rate:

≥3°C/min

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Product Description

2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable

Product Description

The dual-axis temperature-controlled turntable designed for fiber optic gyroscope and IMU testing combines high precision, stability and ease of operation to meet the full process requirements of research and testing, production commissioning, and maintenance and calibration. The equipment supports rate and position function testing, has reliable performance, outstanding cost-effectiveness, and significantly reduces user investment costs. At the same time, its universal design is also suitable for test scenarios of various inertial components and devices, providing a flexible and efficient test platform for scientific research institutes and enterprises. Choose a dual-axis temperature-controlled turntable to make precision testing simpler and more economical!

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″
8	Positioning Error Of Angular Position	inner frame:±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~800°/s
10	Rate Range	outer frame:0.01°/s~200°/s
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥400°/s²
12	Maximum Angular Acceleration	outer frame:≥50°/s²
13	User Slip Ring	Customizable
14	Temperature Range	-55°C~＋100°C
15	Temperature Error	±1°C
16	Temperature Fluctuation	±1°C
17	Temperature Uniformity	±2°C
18	Maximum Heating And Cooling Rate	≥3°C/min
19	Dimensions Inside The Box	450mm x 450mmx 450mm

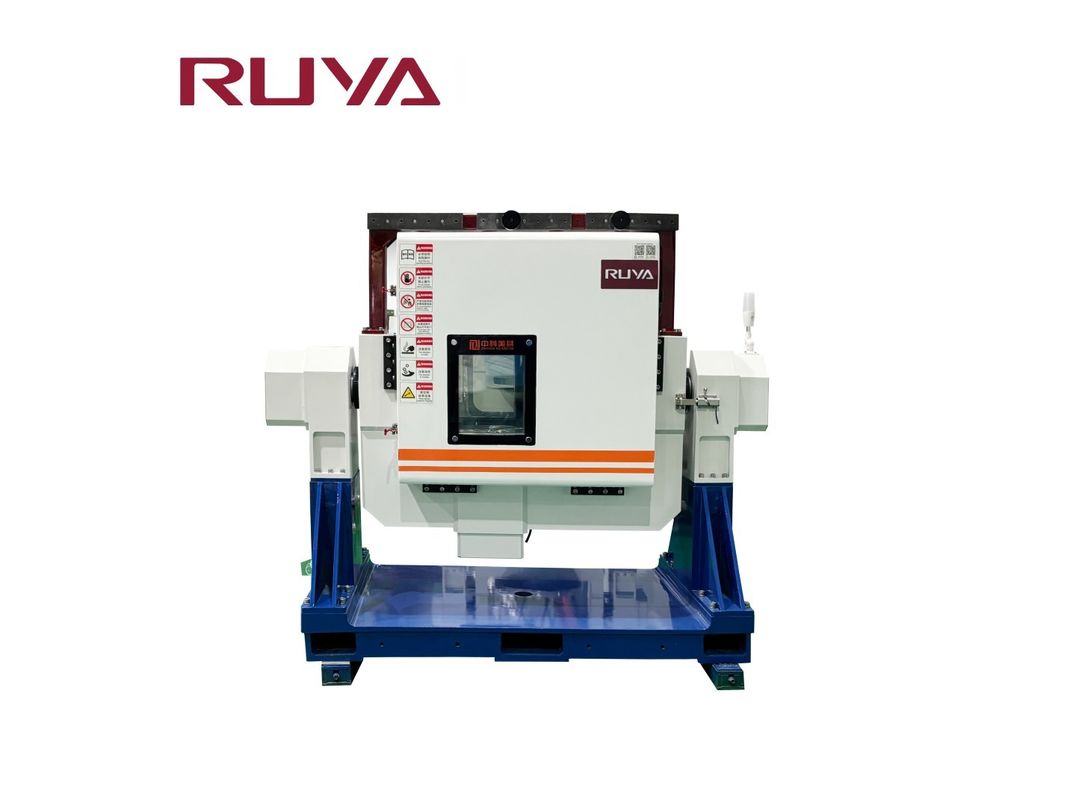

2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable 0

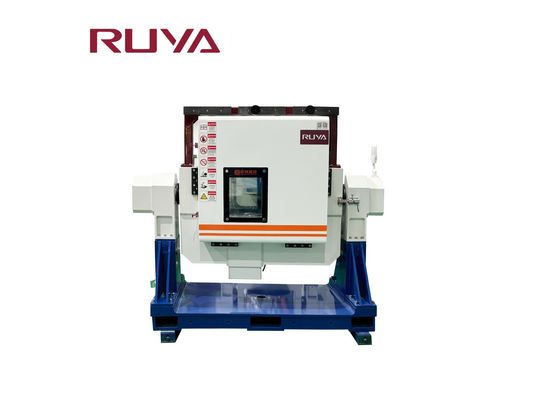

2 Axis Temperature-controlled Turntable Fiber Optic Gyroscopes IMU Testing Turntable 1
