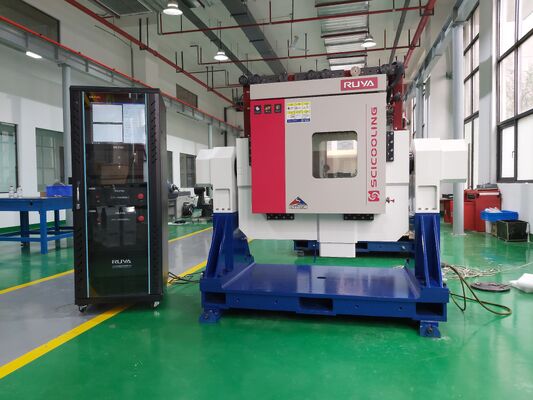

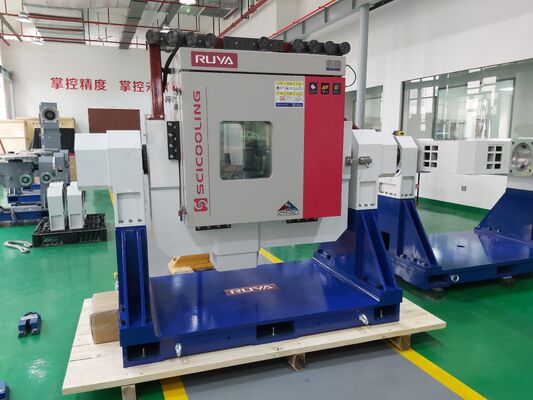

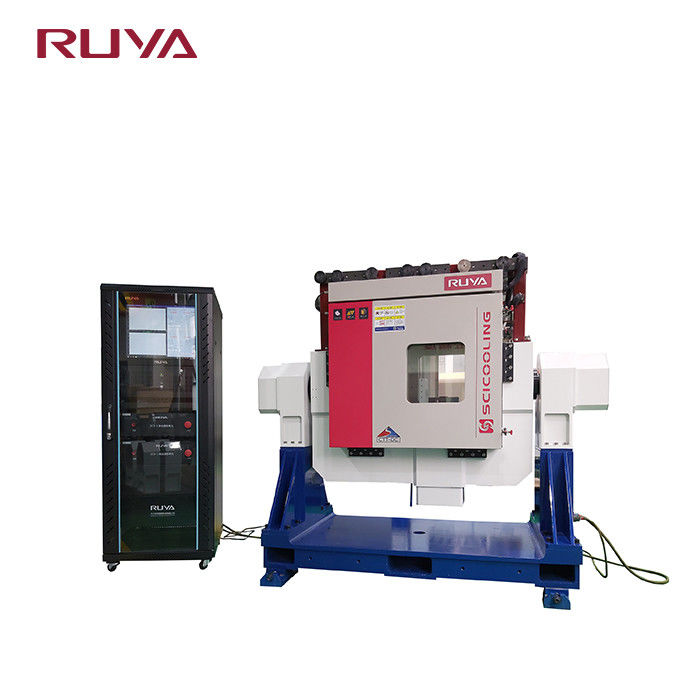

Dual-axis Temperature-controlled Turntable with 30Kg Load Weight for IMU Calibration

Name: Dual-axis Temperature-controlled Turntable with 30Kg Load Weight for IMU Calibration
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400WK
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Temperature Range:

-55°C~＋100°C

Maximum Heating And Cooling Rate:

≥3°C/min

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

IMU Calibration Temperature Controlled Turntable

Dual-axis Temperature-controlled Turntable

IMU Calibration Turntable

Product Description

Dual-axis Temperature-controlled Turntable IMU Calibration Turntable

Product Overview

The dual-axis temperature-controlled turntable is a high-precision device designed for the development, production, and calibration of fiber optic gyroscopes and IMUs. It features excellent rate and position testing capabilities with stable performance, reliable operation, and user-friendly controls. Engineered for economic efficiency, this turntable significantly reduces acquisition costs while maintaining superior performance standards.

This versatile system can be expanded to meet testing requirements for various inertial components and devices, making it an essential precision tool for both laboratory research and production line applications. Whether for R&D verification or batch debugging, the dual-axis temperature-controlled turntable delivers accurate and efficient solutions to advance inertial technology development.

Technical Specifications

Specification	Value
Load Weight	30Kg
Table Diameter	Ф400mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	outer frame: ±3″ inner frame: ±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	inner frame: 0.01°/s~800°/s outer frame: 0.01°/s~200°/s
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	inner frame: ≥400°/s² outer frame: ≥50°/s²
User Slip Ring	Customizable
Temperature Range	-55°C~＋100°C
Temperature Error	±1°C
Temperature Fluctuation	±1°C
Temperature Uniformity	±2°C
Maximum Heating And Cooling Rate	≥3°C/min
Dimensions Inside The Box	450mm x 450mm x 450mm
