Dual-axis Temperature-controlled Turntable IMU Calibration Turntable

Name: Dual-axis Temperature-controlled Turntable IMU Calibration Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400WK
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Temperature Range:

-55°C~＋100°C

Maximum Heating And Cooling Rate:

≥3°C/min

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Product Description

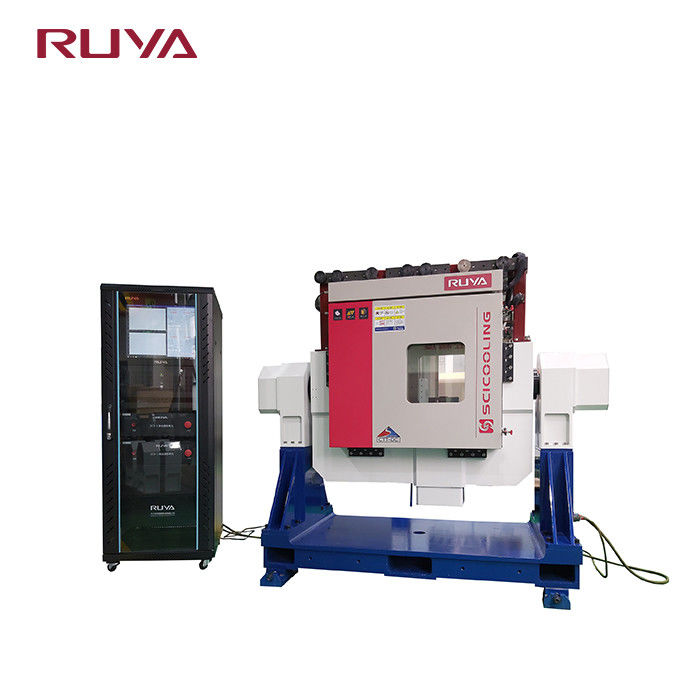

Dual-axis Temperature-controlled Turntable IMU Calibration Turntable

Product Description

The dual-axis temperature-controlled turntable is a high-precision device designed for the development, production and calibration of fiber optic gyroscopes and IMUs, with excellent rate and position testing capabilities. It has stable performance, reliable operation, and easy operation, while taking into account economic efficiency, greatly reducing the user's acquisition cost. In addition, the turntable can also be expanded to meet the testing needs of other inertial components and devices, and is an indispensable precision tool in laboratories and production lines. Whether it is R&D verification or batch debugging, the dual-axis temperature-controlled turntable can provide accurate and efficient solutions to promote the development of the field of inertial technology.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″
8	Positioning Error Of Angular Position	inner frame:±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~800°/s
10	Rate Range	outer frame:0.01°/s~200°/s
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥400°/s²
12	Maximum Angular Acceleration	outer frame:≥50°/s²
13	User Slip Ring	Customizable
14	Temperature Range	-55°C~＋100°C
15	Temperature Error	±1°C
16	Temperature Fluctuation	±1°C
17	Temperature Uniformity	±2°C
18	Maximum Heating And Cooling Rate	≥3°C/min
19	Dimensions Inside The Box	450mm x 450mmx 450mm

Dual-axis Temperature-controlled Turntable IMU Calibration Turntable 0

Dual-axis Temperature-controlled Turntable IMU Calibration Turntable 1
