2DT450GZ Dual Axis Tabletop Tracking Turntable Motion Test Equipment

Name: 2DT450GZ Dual Axis Tabletop Tracking Turntable Motion Test Equipment
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT450GZ
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT450GZ
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф450mm

Rotary Accuracy Of Dual-Axis:

±3″

Perpendicularity Of Dual-Axis:

±3″

Positioning Repeatability:

±1.5″

Weight:

380Kg

Maximum Angular Acceleration（inner）:

≥50°/s²

Maximum Angular Acceleration（outer）:

≥50°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Dual Axis tracking turntable

Tabletop tracking turntable

2DT450GZ dual axis turntable

Product Description

2DT450GZ Dual-axis Tabletop Tracking Turntable Motion Test Equipment

Product Description

The dual-axis tracking turntable is a high-precision two-dimensional testing equipment equipped with a dual-degree-of-freedom motion system on the azimuth axis (X) and pitch axis (Y), which can accurately simulate complex motion trajectories. It adopts a tabletop design and is compatible with various precision components and components. It is widely used in experimental scenarios such as position calibration, rate swing test, and dynamic tracking. Its stable and reliable performance provides accurate testing support for scientific research, military industry, aerospace and other fields, and is an ideal platform for high-performance motion simulation and functional verification.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±1.5″
10	Rate Range	inner frame:0.001°/s~15°/s；
10	Rate Range	outer frame:0.001°/s~15°/s；
11	Angle Rotary Range	outer frame: ±90°
11	Angle Rotary Range	inner frame: ±170°
12	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
13	Maximum Angular Acceleration	inner frame:≥50°/s²；
13	Maximum Angular Acceleration	outer frame:≥50°/s²
14	Weight	380Kg

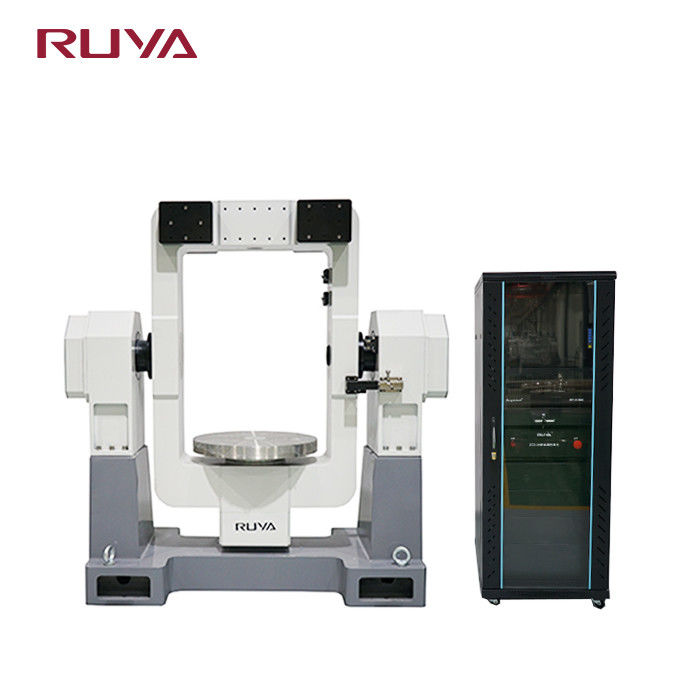

2DT450GZ Dual Axis Tabletop Tracking Turntable Motion Test Equipment 0

2DT450GZ Dual Axis Tabletop Tracking Turntable Motion Test Equipment 1
