3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter

Name: 3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT650-A
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT650-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Table Diameter:

Ф600mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error Of Angular Position:

±0.1°

User Slip Ring:

Customizable

Maximum Workpiece Size:

Ф600×450

View Angle:

≤15°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Navigation test turntables

Anti Interference test turntables

Three Axis test turntable

Product Description

3DT650-A Three Axis Navigation Anti Interference Test Turntable

Product Overview

The 3DT650-A Three-axis Navigation Anti-interference Test Turntable is a precision device capable of rotation on three independent axes (pitch, roll, and yaw). This advanced equipment finds extensive applications in aerospace, scientific research, and industrial automation fields where precise multi-axis motion control is required.

Technical Specifications

Specification	Value
Load Weight	20Kg
Table Diameter	Ф600mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Three-Axis	±3″
Perpendicularity Of Three-Axis	±3″
Intersection Of Three-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	±0.1°
Rate Range	Inner frame: ≤3600°/s Middle frame: ≤20°/s Outer frame: ≤20°/s
Rotation Range	Inner frame: continuous rotation Middle frame: -90°~+90° Outer frame: continuous rotation
Maximum Angular Acceleration	Inner frame: ≥60°/s² Middle frame: ≥20°/s² Outer frame: ≥20°/s²
User Slip Ring	Customizable
Maximum Workpiece Size	Ф600*450
View Angle	≤15°

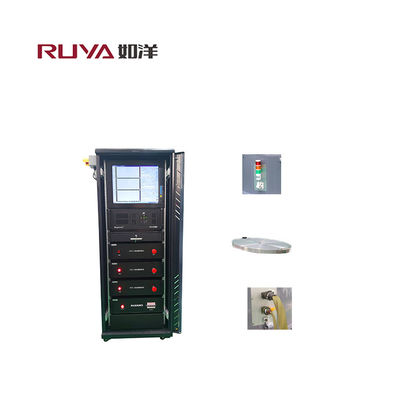

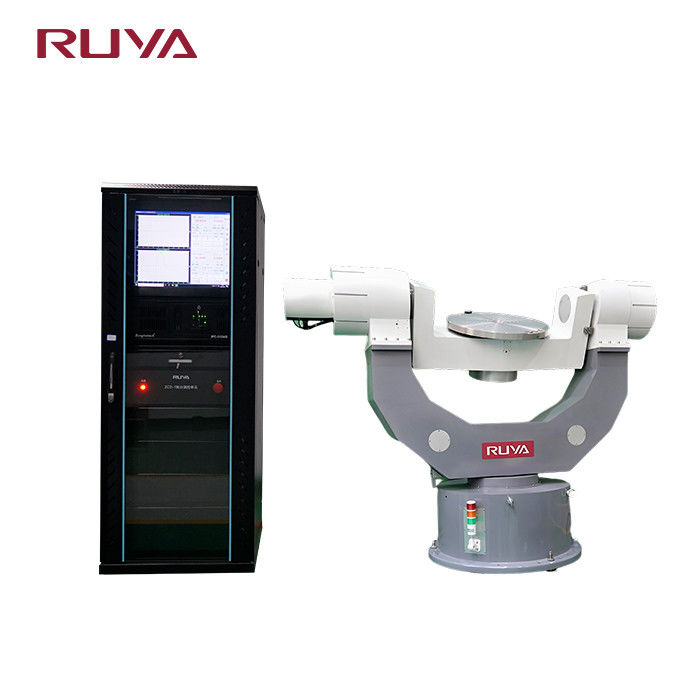

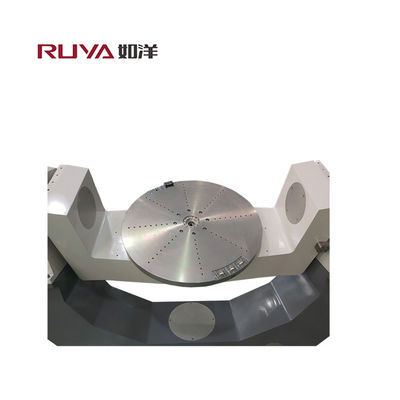

Product Images
