3DT420 Three-Axis Turntable with max 65Kg Load Capacity for Calibration Testing

Name: 3DT420 Three-Axis Turntable with max 65Kg Load Capacity for Calibration Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT420
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT420
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

≤65Kg

Positioning Error（inner）:

No Dynamic Index Requirements

Positioning Error（middle）:

±4″

Positioning Error（outer）:

±4″

Rotation Range（inner）:

±10°

Rotation Range（middle）:

-10°~+150°

Rotation Range（outer）:

±150°

Maximum Size Of Photoelectric Tower:

Ф420×680

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Three Axis calibration turntable

3DT420 calibration turntable

3 Axis calibration turntables

Product Description

3DT420 Three Axis Turret Test Calibration Turntable

Product Overview

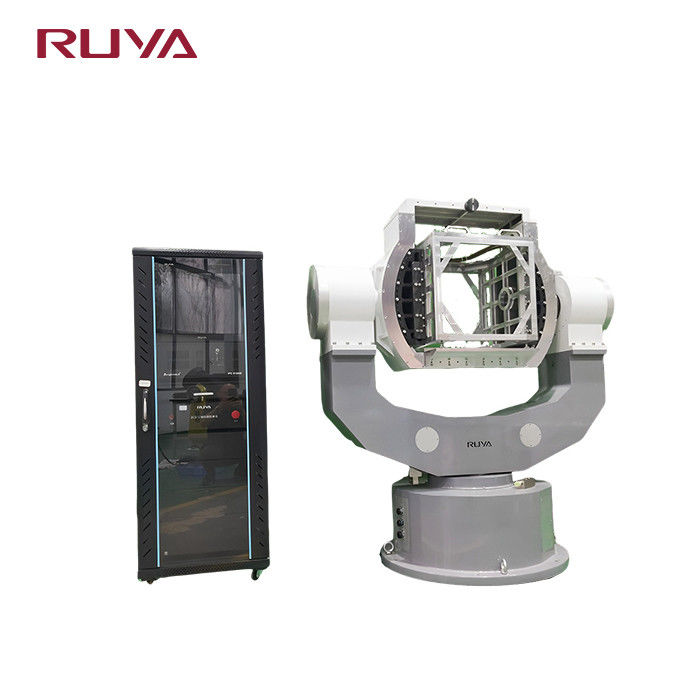

The 3DT420 Three-axis Turret Test Calibration Turntable is designed for offline calibration testing of two-axis photoelectric turret equipment. This precision system provides comprehensive three-axis motion capabilities to meet rigorous testing requirements.

While the target turret operates with only two degrees of freedom (azimuth and pitch), this three-axis test turntable includes roll axis functionality to ensure complete testing coverage. The rotation range and position accuracy exceed the motion range and stability requirements of the turret being calibrated.

Technical Specifications

Parameter	Value
Load Weight	≤65Kg
Rotary Accuracy Of Three-Axis	±3″
Perpendicularity Of Three-Axis	±3″
Intersection Of Three-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Inner frame: No dynamic index requirements Middle frame: ±4″ Outer frame: ±4″
Rate Range	Inner frame: Manual Middle frame: ≥20°/s Outer frame: ≥20°/s
Rotation Range	Inner frame: ±10° Middle frame: -10°~+150° Outer frame: ±150°
Maximum Angular Acceleration	Inner frame: Manual Middle frame: ≥20°/s² Outer frame: ≥20°/s²
User Slip Ring	Customizable
Maximum Size Of Photoelectric Tower	Ф420×680
