3DT565-B Three Axis Electric Turntable with 30Kg Load Weight Customizable Slip Ring for Inertial Navigation Testing

Name: 3DT565-B Three Axis Electric Turntable with 30Kg Load Weight Customizable Slip Ring for Inertial Navigation Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT565-B
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT565-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Maximum Size Of Test Piece:

400mm×400mm×400mm

Rotary Accuracy Of Three-Axis:

±3″

Perpendicularity Of Three-Axis:

±3″

Positioning Error:

±5″

Positioning Repeatability:

±2″

Intersection Of Three-Axis:

Ф0.5mm Diameter Ball

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Three Axis inertial navigation test turntable

Electric inertial navigation test turntable

3DT565-B test turntable

Product Description

3DT565-B Three Axis Electric Inertial Navigation Test Turntable

Product Overview

The 3DT565-B Three-axis Electric Turntable is a precision device capable of rotation on three independent axes (pitch, roll, and yaw). This advanced equipment finds extensive applications in aerospace, scientific research, and industrial automation fields where precise motion simulation and testing are required.

Technical Specifications

Specification	Details
Load Weight	30Kg
Maximum Size of Test Piece	400mm * 400mm * 400mm
Rotary Accuracy of Three-Axis	±3″
Perpendicularity of Three-Axis	±3″
Intersection of Three-Axis	Ф0.5mm diameter ball
Positioning Error of Angular Position	±5″
Positioning Repeatability of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s ~ 200°/s Middle frame: 0.01°/s ~ 200°/s Outer frame: 0.01°/s ~ 200°/s
Rate Accuracy	ω ≤ 1°/s: 210⁻³ (1° average) 1°/s ≤ ω < 10°/s: 210⁻⁴ (10° average) ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥100°/s² Middle frame: ≥100°/s² Outer frame: ≥50°/s²
User Slip Ring	Customizable

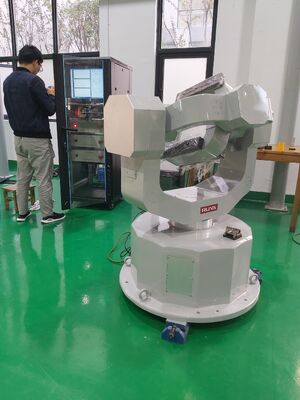

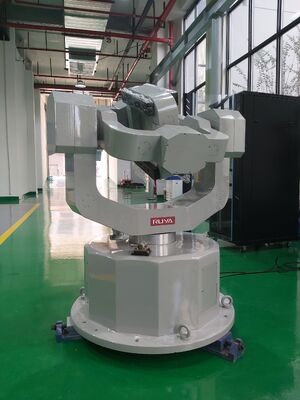

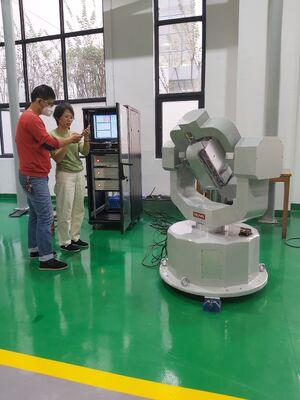

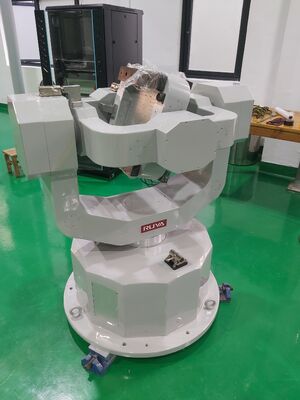

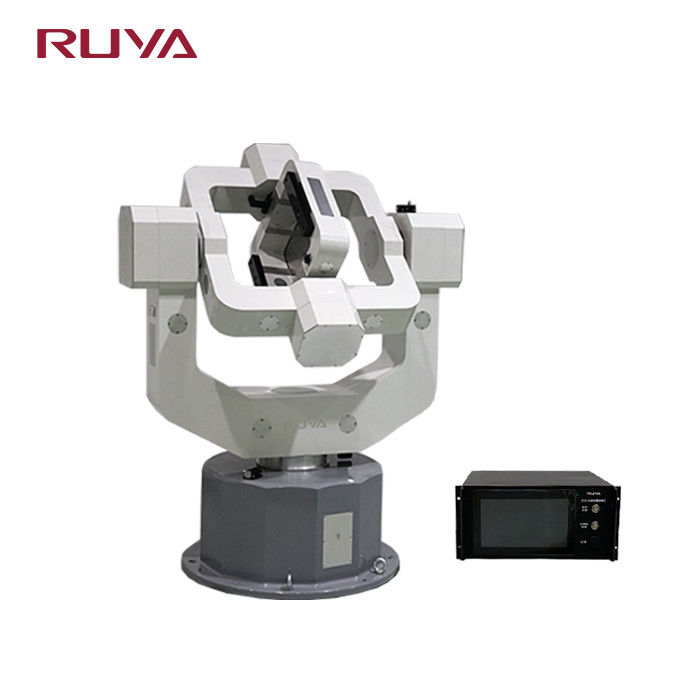

Product Images
