3 Axis Turntable
Created with Pixso. 3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing

Brand Name: RUYA
Model Number: 3DT400-A
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Table Diameter:
Ф450mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Positioning Error Of Angular Position:
±2″
Positioning Repeatability:
±2″
Rate Range(inner):
0.01°/s~300°/s
Rate Range(middle):
0.01°/s~200°/s
Rate Range(outer):
0.01°/s~200°/s
Packaging Details:
wooden box
Supply Ability:
≤3 sets， 3 months
Highlight:

3DT400-A 3 Axis Turntable

,

30kg 3 Axis Turntable

,

Three Axis Electric Turntable

Product Description
3DT400-A Three Axis Electric Turntable With Payload 30kg

The 3DT400-A three-axis electric turntable is a high-precision, multi-degree-of-freedom testing equipment designed for demanding industrial and research applications.

Product Description

This three-axis electric turntable features comprehensive three-axis linkage capabilities across azimuth (X), pitch (Y), and roll (Z) axes, enabling precise simulation of complex attitude movements. The system incorporates a high-performance servo drive system and supports multiple control modes including position and rate control.

Ideal for dynamic performance testing and calibration of inertial navigation systems, aviation guidance equipment, and optoelectronic stabilization platforms. The modular design ensures compatibility with various sensors and loads, while the high-rigidity structure guarantees low vibration and high repeatability positioning accuracy, meeting the stringent testing requirements of scientific research institutions.

Product Parameters
Specification Value
Load Weight 30Kg
Table Diameter Ф450mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~300°/s
Middle frame: 0.01°/s~200°/s
Outer frame: 0.01°/s~200°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥200°/s²
Middle frame: ≥100°/s²
Outer frame: ≥100°/s²
User Slip Ring Customizable
Product Images

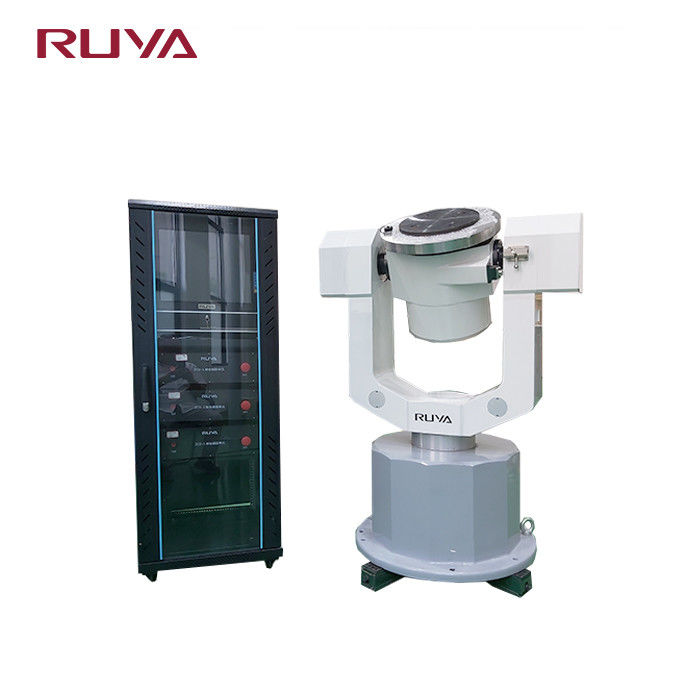

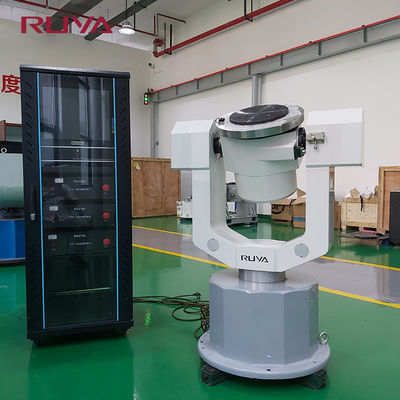

3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing 0 3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing 1
Tags:

calibration turntable

3 Axis Turntable

Inertial Navigation Test Turntable
