Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Multi Axis Simulation Turntable
Created with Pixso. 3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing
name
  • name
  • name
  • name
  • name
  • name

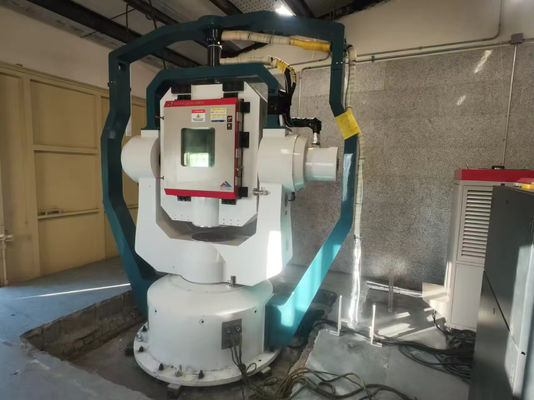

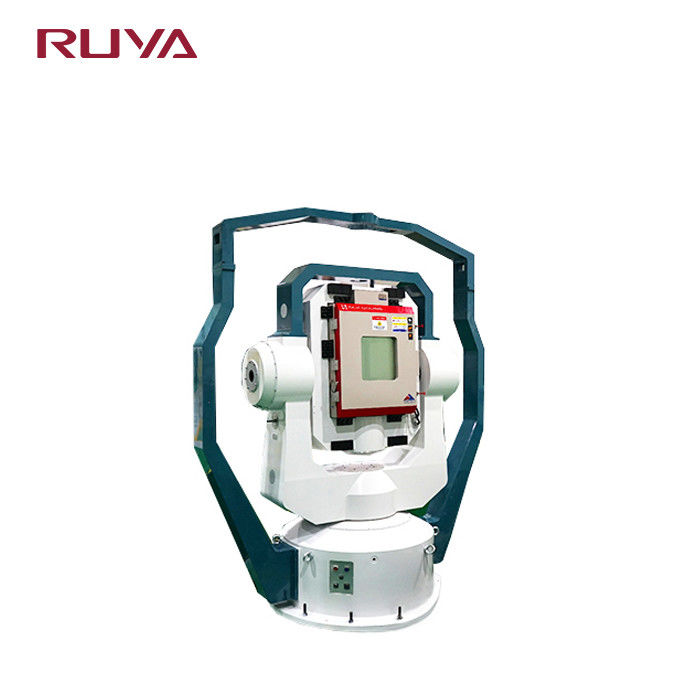

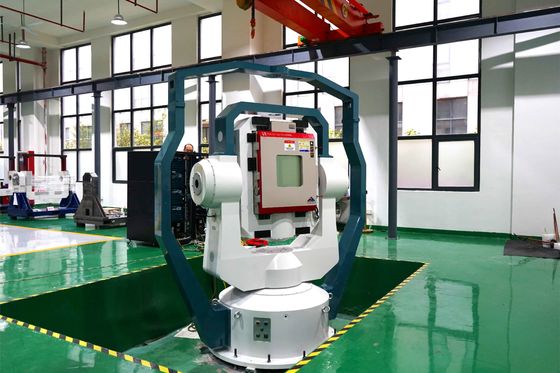

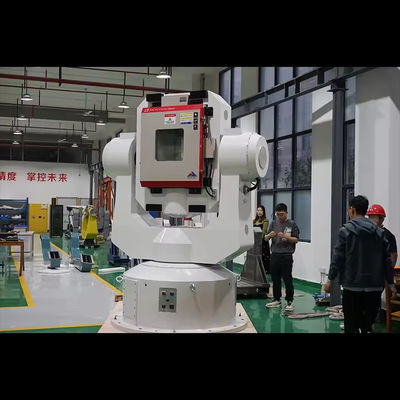

3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing

Brand Name: RUYA
Model Number: 3DT400FZ/WK
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Load Weight:
30Kg
Table Diameter:
Ф400mm
Rotary Accuracy:
±3″
Perpendicularity:
±3″
Temperature Range:
-50°C~＋120°C
Temperature Error:
±1°C
Temperature Fluctuation:
±1°C
Temperature Uniformity:
±2°C
Maximum Heating And Cooling Rate:
≥3°C/min
Imensions Inside The Box:
450mm X 450mmx 450mm
Packaging Details:
wooden box
Supply Ability:
≤3 sets，4 months
Highlight:

3DT400FZ/WK temperature control turntable

,

3 Axis temperature control turntable

,

temperature control 3 axis turntable

Product Description
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable
Product Overview

The 3DT400FZ/WK 3-axis Simulation Temperature Control Turntable is a highly integrated experimental equipment designed for product and environmental adaptability testing across various industries including aerospace, automobile manufacturing, and materials science. This advanced system simulates complex real-world environmental conditions such as temperature, humidity, and vibration to thoroughly evaluate product performance and reliability under challenging operational scenarios.

Technical Specifications
Specification Details
Load Weight 30Kg
Table Diameter Ф400mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~1800°/s
Middle frame: 0.01°/s~500°/s
Outer frame: 0.01°/s~500°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥2000°/s²
Middle frame: ≥1200°/s²
Outer frame: ≥800°/s²
User Slip Ring Customizable
System Bandwidth (Double Ten) Inner frame: 12Hz
Middle frame: ≥6Hz
Outer frame: ≥6Hz
Temperature Range -50°C~＋120°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 450mm x 450mm x 450mm
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 0
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 1

3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 2
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 3
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 4
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 5
3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable with 30Kg Load Weight for Precision Testing 6
