3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight

Name: 3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT550WK
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT550WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Table Diameter:

Ф550mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error:

±2″

Positioning Repeatability:

±2″

Temperature Range:

-50°C~＋120°C

Dimensions Inside The Box:

600mm X 600mmx 620mm

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

3DT550WK Inertial Navigation Test Turntable

3 Axis Inertial Navigation Test Turntable

40Kg test turntables

Product Description

3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber

Product Overview

The 3FDT550WK three-axis temperature control turntable is a specialized testing equipment that integrates temperature control with precise rotation functions. This system is primarily designed for comprehensive performance testing of materials and products under extreme high or low temperature environmental conditions.

Technical Specifications

Specification	Value
Load Weight	40Kg
Table Diameter	Ф550mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Three-Axis	±3″
Perpendicularity Of Three-Axis	±3″
Intersection Of Three-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s~500°/s Middle frame: 0.01°/s~200°/s Outer frame: 0.01°/s~100°/s
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥100°/s² Middle frame: ≥100°/s² Outer frame: ≥100°/s²
User Slip Ring	Customizable
Temperature Range	-50°C~＋120°C
Temperature Error	±1°C
Temperature Fluctuation	±1°C
Temperature Uniformity	±2°C
Maximum Heating And Cooling Rate	≥3°C/min
Dimensions Inside The Box	600mm x 600mm x 620mm

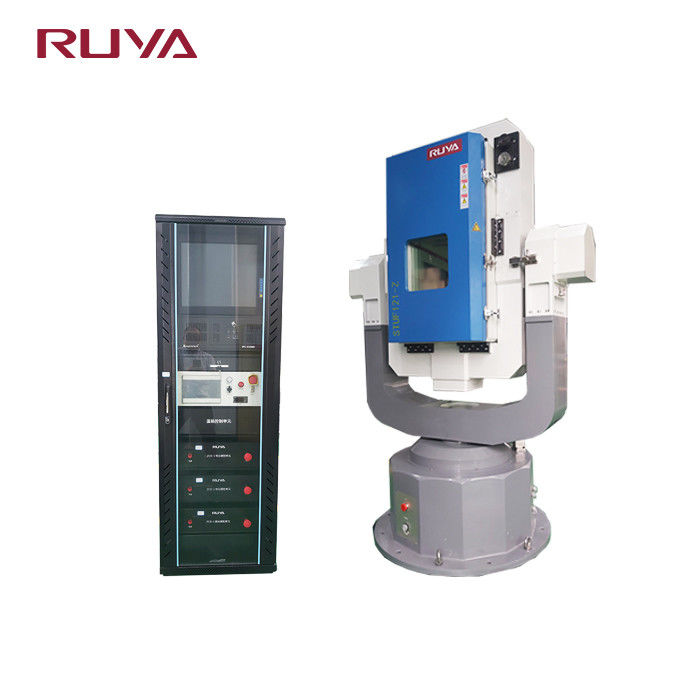

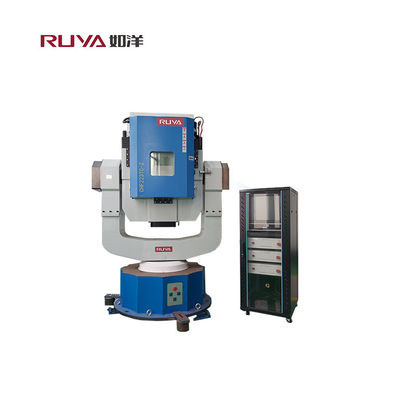

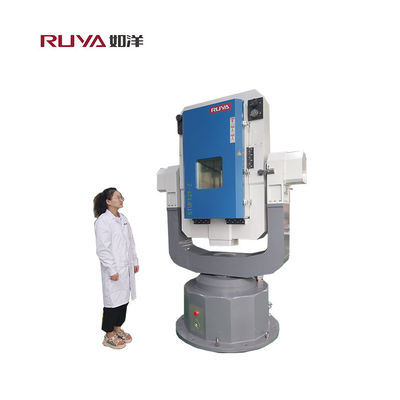

Product Images
