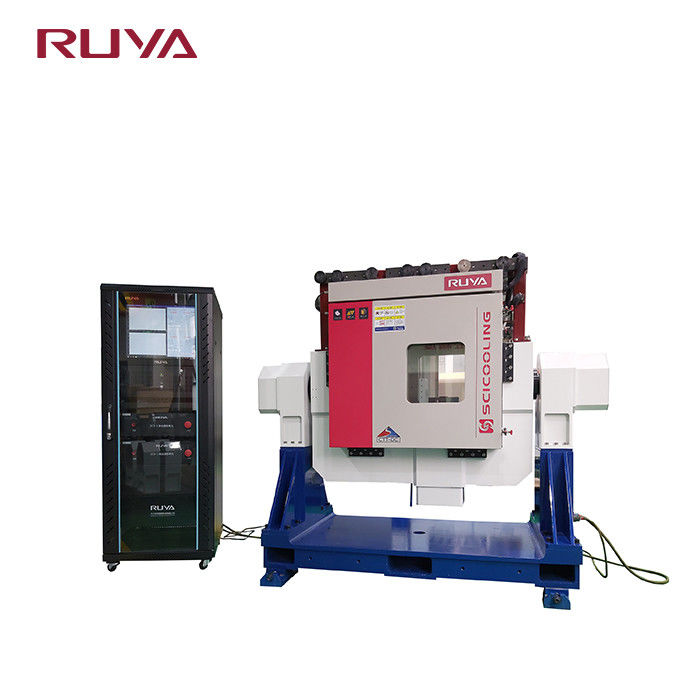

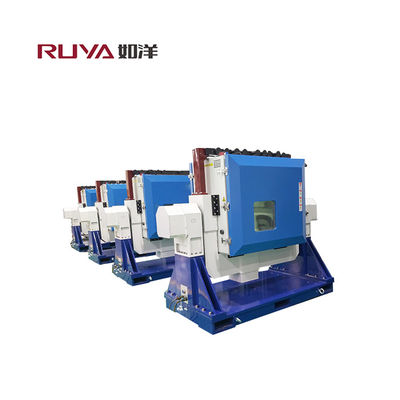

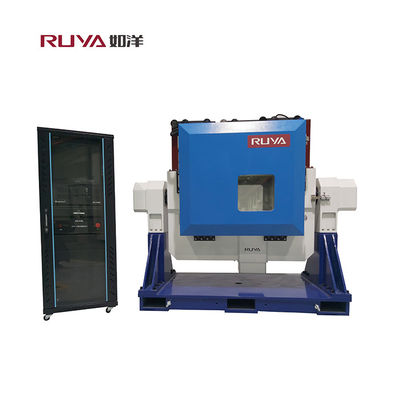

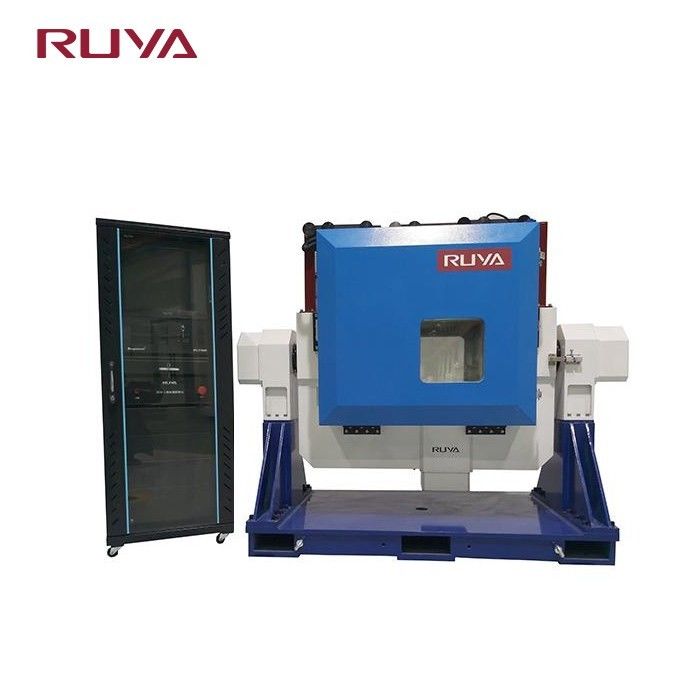

2DT400WK 2 Axis Temperature Control Fiber Optic Gyroscopes IMU Calibration Turntable

Name: 2DT400WK 2 Axis Temperature Control Fiber Optic Gyroscopes IMU Calibration Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400WK
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Temperature Range:

-55°C~＋100°C

Maximum Heating And Cooling Rate:

≥3°C/min

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

2 Axis Calibration Turntable

IMU Calibration Turntable

Temperature Control 2 axis turntable

Product Description

2DT400WK 2-axis Temperature Control Fiber Optic Gyroscopes And IMU Calibration Turntable

Product Description

The dual-axis temperature control turntable is a special precision equipment developed for the research, testing, production debugging and maintenance calibration of fiber optic gyroscopes and IMUs. It is mainly used for rate and position function tests. It has the characteristics of stable performance, reliable operation, simple operation and low cost. The equipment can also be used for experimental testing of other inertial components and devices.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″
8	Positioning Error Of Angular Position	inner frame:±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~800°/s
10	Rate Range	outer frame:0.01°/s~200°/s
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥400°/s²
12	Maximum Angular Acceleration	outer frame:≥50°/s²
13	User Slip Ring	Customizable
14	Temperature Range	-55°C~＋100°C
15	Temperature Error	±1°C
16	Temperature Fluctuation	±1°C
17	Temperature Uniformity	±2°C
18	Maximum Heating And Cooling Rate	≥3°C/min
19	Dimensions Inside The Box	450mm x 450mmx 450mm

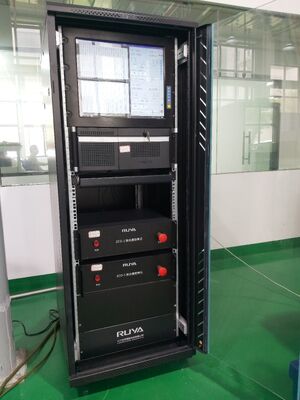

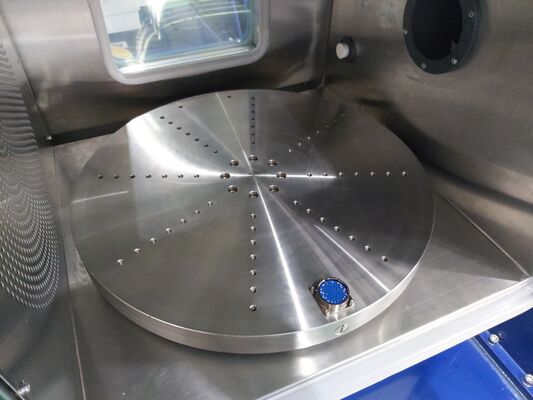

2DT400WK 2 Axis Temperature Control Fiber Optic Gyroscopes IMU Calibration Turntable 0

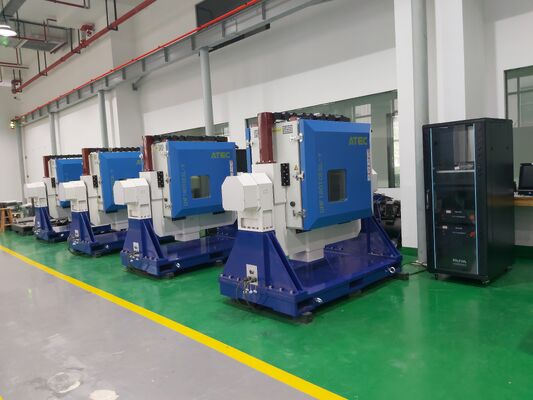

2DT400WK 2 Axis Temperature Control Fiber Optic Gyroscopes IMU Calibration Turntable 1
