DT650WK Single Axis Temperature Control MEMS Gyroscope Test Turntable

Name: DT650WK Single Axis Temperature Control MEMS Gyroscope Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT650WK
Availability: InStock

Brand Name:	RUYA
Model Number:	DT650WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф650mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Maximum Angular Acceleration:

≥300°/s²

User Slip Ring:

Customizable

Temperature Range:

-55°C~＋85°C

Dimensions Inside The Box:

750mm X 750mmx 900mm

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

Single Axis gyroscope test turntable

Temperature Control gyroscope test turntable

DT650WK test turntable

Product Description

DT650WK Single-axis Temperature Control MEMS Gyroscope Test Turntable

Product Description

DT650WK turntable is a high-precision equipment specially designed for testing the temperature characteristics of MEMS gyroscopes. It can simulate the working environment in a wide temperature range and cooperate with precise speed control to comprehensively evaluate the performance of the gyroscope. The turntable supports zero-bias testing during startup and bias measurement under constant and variable temperature conditions, accurately captures the modal resonance frequency, quality factor and error drift patterns caused by temperature changes, and provides data support for the segmented temperature compensation algorithm. Through the built-in temperature control system and the synchronous linkage of the turntable, the compensation effect can be quickly verified, the bias stability index at different temperatures can be output, and a comprehensive test report including temperature-frequency characteristic curve, bias repeatability and other data can be generated, which significantly improves the environmental adaptability optimization efficiency of MEMS gyroscopes.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф650mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±2″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±1000°/s
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1°average)
		1°/s≤ω<10°/s , 2×10-4 (10°average)
		ω≥10°/s , 2×10-5 (360°average)
10	Maximum Angular Acceleration	≥300°/s²
11	User Slip Ring	Customizable
12	Temperature Range	-55°C~＋85°C
13	Temperature Error	±1°C
14	Temperature Fluctuation	±1°C
15	Temperature Uniformity	±2°C
16	Maximum Heating And Cooling Rate	≥3°C/min
17	Dimensions Inside The Box	750mm x 750mmx 900mm

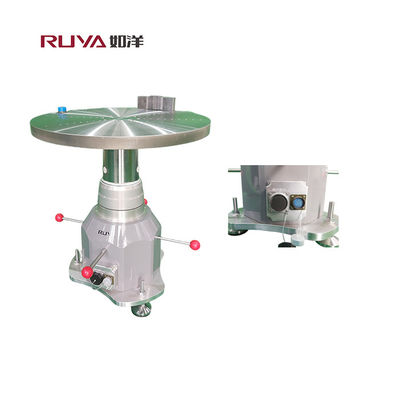

DT650WK Single Axis Temperature Control MEMS Gyroscope Test Turntable 0

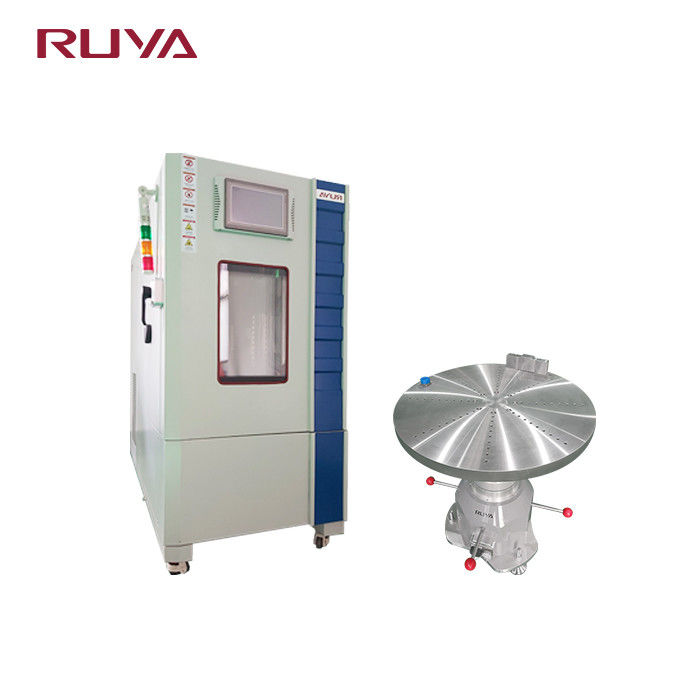

DT650WK Single Axis Temperature Control MEMS Gyroscope Test Turntable 1
