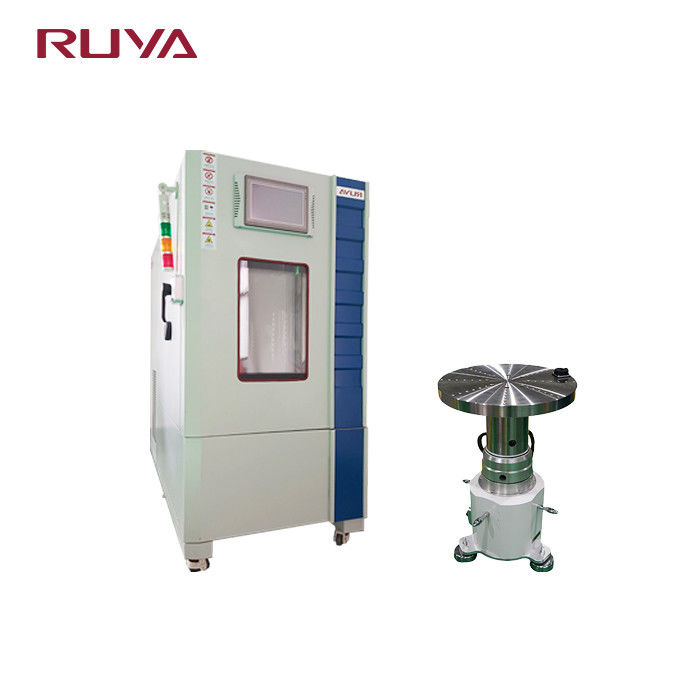

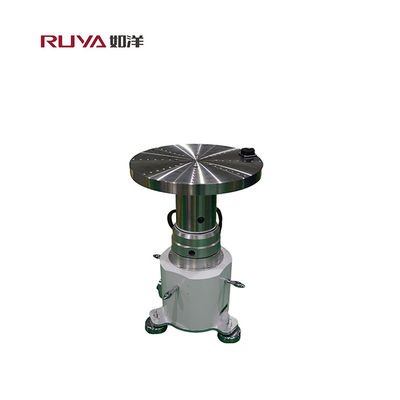

DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable

Name: DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT450WK
Availability: InStock

Brand Name:	RUYA
Model Number:	DT450WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф450mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy Of Axis:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±1000°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

MEMS Gyroscope test turntable

1 axis test turntable

DT450WK 1 axis turntable

Product Description

DT450WK Single-axis Temperature Control MEMS Gyroscope Test Turntable

Product Description

The turntable can test the temperature characteristics of the MEMS gyroscope, and obtain the relationship curve of the modal resonant frequency and the figure of merit of the MEMS gyroscope with temperature, so as to give a segmented temperature compensation method. Zero bias measurement during startup; zero bias measurement at different temperatures; measurement of MEMS gyro errors caused by temperature changes; zero measurement at different temperatures after taking temperature compensation measures; a comprehensive test evaluation report can be provided.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±1000°/s
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1°average)
		1°/s≤ω<10°/s , 2×10-4 (10°average)
		ω≥10°/s , 2×10-5 (360°average)
10	Maximum Angular Acceleration	≥300°/s²
11	User Slip Ring	Customizable
12	Temperature Range	-55°C~＋85°C
13	Temperature Error	±1°C
14	Temperature Fluctuation	±1°C
15	Temperature Uniformity	±2°C
16	Maximum Heating And Cooling Rate	≥3°C/min
17	Dimensions Inside The Box	500mm x 500mmx 600mm

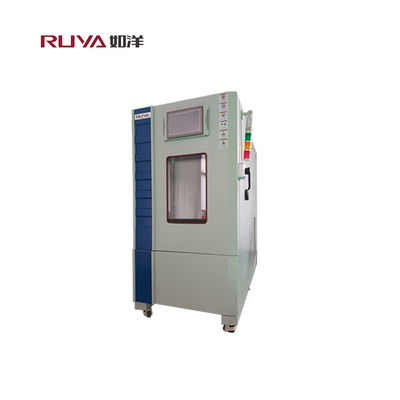

DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable 0

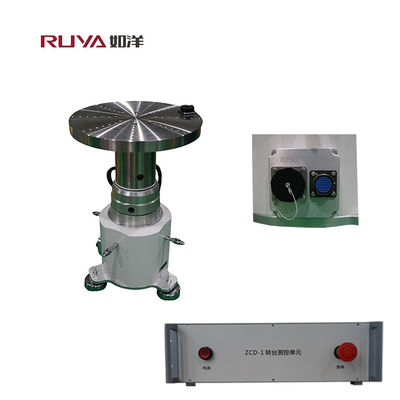

DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable 1
