Rate Table With Temperature Chamber
Created with Pixso. DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable with 30Kg Load Weight
name
  • name
  • name
  • name
  • name
  • name

DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable with 30Kg Load Weight

Brand Name: RUYA
Model Number: DT450WK
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Load Weight:
30Kg
Table Diameter:
Ф450mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Rotary Accuracy Of Axis:
±3″
Positioning Error:
±3″
Positioning Repeatability:
±2″
Rate Range:
±0.0001°/s~±1000°/s
Packaging Details:
wooden box
Supply Ability:
≤3 sets，4 months
Highlight:

MEMS Gyroscope test turntable

,

1 axis test turntable

,

DT450WK 1 axis turntable

Product Description
DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable
Product Overview

The DT450WK Single-axis Temperature Control MEMS Gyroscope Test Turntable is designed for comprehensive testing of MEMS gyroscope temperature characteristics. This system enables the acquisition of relationship curves for modal resonant frequency and figure of merit with temperature variations, facilitating segmented temperature compensation methodologies.

Key testing capabilities include zero bias measurement during startup, zero bias measurement at different temperatures, analysis of MEMS gyro errors induced by temperature changes, and zero measurement at various temperatures following temperature compensation implementation. The system provides comprehensive test evaluation reports for detailed performance analysis.

Technical Specifications
Specification Value
Load Weight 30Kg
Table Diameter Ф450mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range ±0.0001°/s~±1000°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration ≥300°/s²
User Slip Ring Customizable
Temperature Range -55°C~＋85°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 500mm x 500mm x 600mm

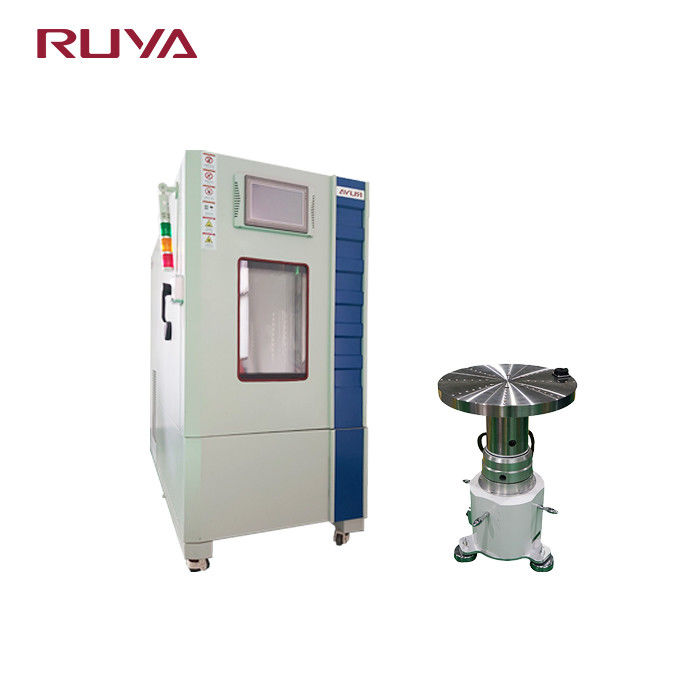

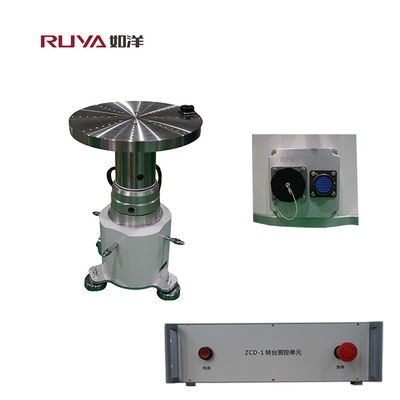

DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable with 30Kg Load Weight 0 DT450WK Single Axis Temperature Control MEMS Gyroscope Test Turntable with 30Kg Load Weight 1
