3DT350-B High Precision Three Axis Simulation Inertial Test Electric Turntable

Name: 3DT350-B High Precision Three Axis Simulation Inertial Test Electric Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT350-B
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT350-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Maximum Size Of Test Piece:

255mm×255mm×150mm

Rotary Accuracy Of Three-Axis:

±5″

Perpendicularity Of Three-Axis:

±6″

Positioning Error Of Angular Position:

±8″

Positioning Repeatability Of Angular Position:

±8″

Maximum Angular Acceleration（inner）:

≥100°/s²

Maximum Angular Acceleration （middle）:

≥100°/s²

Maximum Angular Acceleration（outer）:

≥50°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Three Axis Inertial Test Electric Turntable

3DT350-B Inertial Test Electric Turntable

3 Axis electric turntables

Product Description

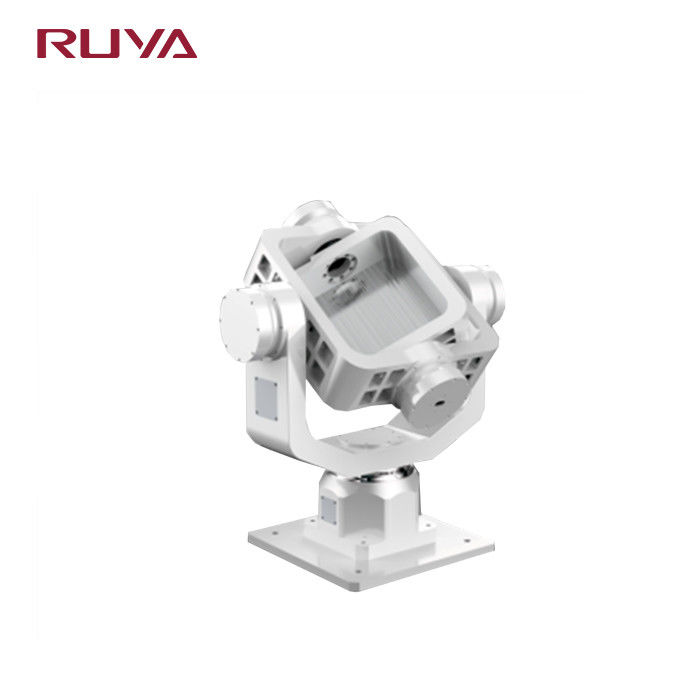

3DT350-B Three Axis Simulation Inertial Test Electric Turntable

Product Overview

The 3DT350-B Three-axis Simulation Inertial Test Electric Turntable integrates azimuth, pitch, and roll axes to simulate full attitude motion of aircraft, satellites, and other equipment. This system is widely used for calibration and verification of inertial measurement units (IMU) and integrated navigation systems.

The open software interface supports customized motion trajectory programming, coupled with real-time data monitoring functions. This provides efficient and reliable solutions for device performance testing in complex environments, assisting in the development and optimization of high-precision equipment.

Technical Specifications

Specification	Details
Load Weight	15Kg
Maximum Size of Test Piece	255mm × 255mm × 150mm
Rotary Accuracy of Three-Axis	±5″
Perpendicularity of Three-Axis	±6″
Intersection of Three-Axis	Ф0.5mm diameter ball
Positioning Error of Angular Position	±8″
Positioning Repeatability of Angular Position	±8″
Rate Range	Inner frame: 0.01°/s ~ 200°/s Middle frame: 0.01°/s ~ 100°/s Outer frame: 0.01°/s ~ 100°/s
Rate Accuracy	ω ≤ 1°/s: 2×10⁻³ (1° average) 1°/s ≤ ω < 10°/s: 2×10⁻⁴ (10° average) ω ≥ 10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥100°/s² Middle frame: ≥100°/s² Outer frame: ≥50°/s²
User Slip Ring	Customizable
Table Body Dimensions	654mm × 654mm × 600mm
