3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable

Name: 3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 3DT400FZ/WK
Availability: InStock

Brand Name:	RUYA
Model Number:	3DT400FZ/WK
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф400mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Temperature Range:

-50°C~＋120°C

Temperature Error:

±1°C

Temperature Fluctuation:

±1°C

Temperature Uniformity:

±2°C

Maximum Heating And Cooling Rate:

≥3°C/min

Imensions Inside The Box:

450mm X 450mmx 450mm

Packaging Details:

wooden box

Supply Ability:

≤3 sets，4 months

Highlight:

3DT400FZ/WK temperature control turntable

3 Axis temperature control turntable

temperature control 3 axis turntable

Product Description

3DT400FZ/WK 3-axis Simulation Temperature Control Turntable

Product Description

The three-axis simulation temperature control turntable is a highly integrated experimental equipment, mainly used for product and environmental adaptability testing in aerospace, automobile manufacturing, materials science and other fields. It can simulate various complex environments that may be encountered in practical use, such as temperature, humidity, vibration, etc., in order to test the performance and reliability of products under these conditions.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Three-Axis	±3″
6	Perpendicularity Of Three-Axis	±3″
7	Intersection Of Three-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	±2″
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~1800°/s；
		middle frame:0.01°/s~500°/s；
		outer frame:0.01°/s~500°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360°average)
12	Maximum Angular Acceleration	inner frame:≥2000°/s²
		middle frame:≥1200°/s²
		outer frame:≥800°/s²
13	User Slip Ring	Customizable
14	System Bandwidth (Double Ten)	inner frame:12Hz
		middle frame:≥6Hz
		outer frame:≥6Hz
15	Temperature Range	-50°C~＋120°C
16	Temperature Error	±1°C
17	Temperature Fluctuation	±1°C
18	Temperature Uniformity	±2°C
19	Maximum Heating And Cooling Rate	≥3°C/min
20	Dimensions Inside The Box	450mm x 450mmx 450mm

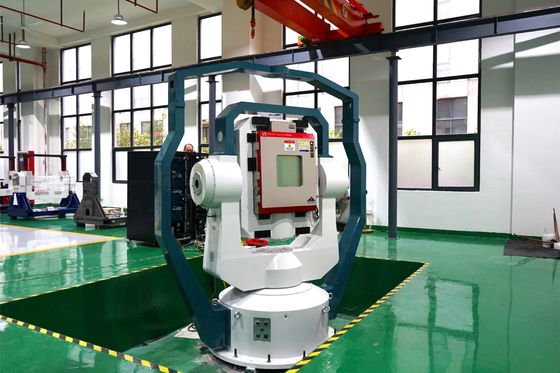

3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable 0

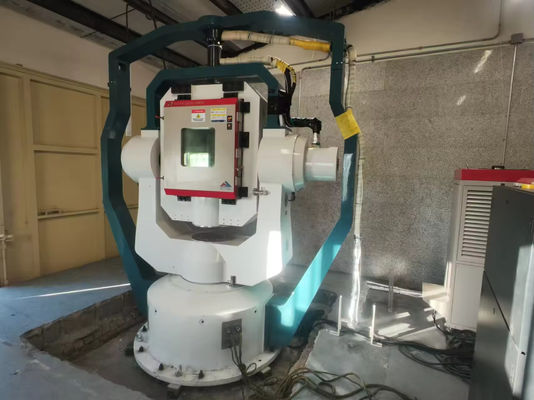

3DT400FZ/WK 3 Axis Simulation Temperature Control Test Turntable 1
