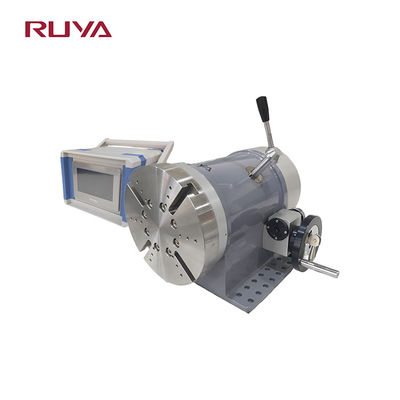

Servo-type Calibration Device for Clinometers with Ф200mm Table Diameter

Brand Name:	RUYA
Model Number:	/
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф200mm

Table Runout:

0.02mm

Table Flatness:

0.02mm

Load Capability:

≤15Kg

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

Calibrator High Precision

Manual Inclinometer Calibrator

Servo calibration device

Product Description

Servo-type Calibration Devices of Clinometers

Servo High-precision Manual Inclinometer Calibration Device

The manual Calibration Devices of Clinometers is a precision instrument designed for calibrating various types of inclinometers. This device enables manual calibration of fixed inclinometers, sliding inclinometers, and other similar measurement instruments.

In practical applications, this calibration device helps ensure the measurement precision and accuracy of inclinometers, thereby improving the quality and reliability of engineering measurements across various industrial and construction applications.

Product Specifications

Specification	Value
Table Diameter	Ф200mm
Table Flatness	0.02mm
Table Runout	0.02mm
Load Capability	≤15Kg
Rotary Accuracy Of Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±1.5″
Adjustable Range Of Perpendicularity	±15°
Weight	about 60kg

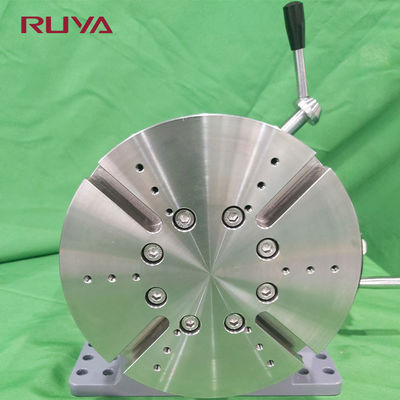

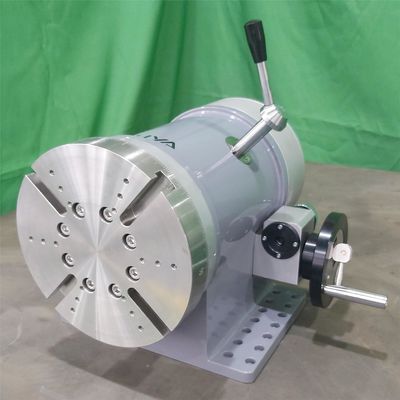

Product Images
