Servo High Precision Manual Inclinometer Calibration Device

Brand Name:	RUYA
Model Number:	/
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф200mm

Table Runout:

0.02mm

Table Flatness:

0.02mm

Load Capability:

≤15Kg

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

Calibrator High Precision

Manual Inclinometer Calibrator

Servo calibration device

Product Description

Servo High-precision Manual Inclinometer Calibration Device

Product Description

The manual inclinometer calibrator is a device used to calibrate inclinometers. It can calibrate the inclinometer manually.

In practical applications, manual inclinometer calibrator can be used to calibrate various types of inclinometers, such as fixed inclinometers, sliding inclinometers, etc. It can help users ensure the measurement precision and accuracy of inclinometers and improve the quality and reliability of engineering measurements.

Product parameters

Specification
1	Table Diameter	Ф200mm
2	Table Flatness	0.02mm
3	Table Runout	0.02mm
4	Load Capability	≤15Kg
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±1.5″
8	Adjustable Range Of Perpendicularity	±15°
9	Weight	about 60kg

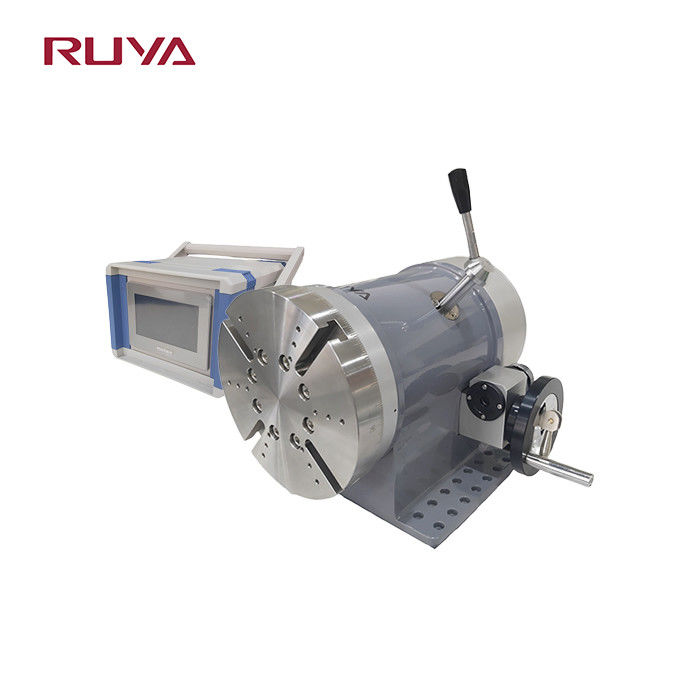

Servo High Precision Manual Inclinometer Calibration Device 0

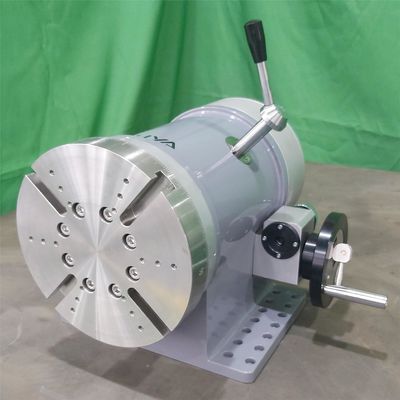

Servo High Precision Manual Inclinometer Calibration Device 1
