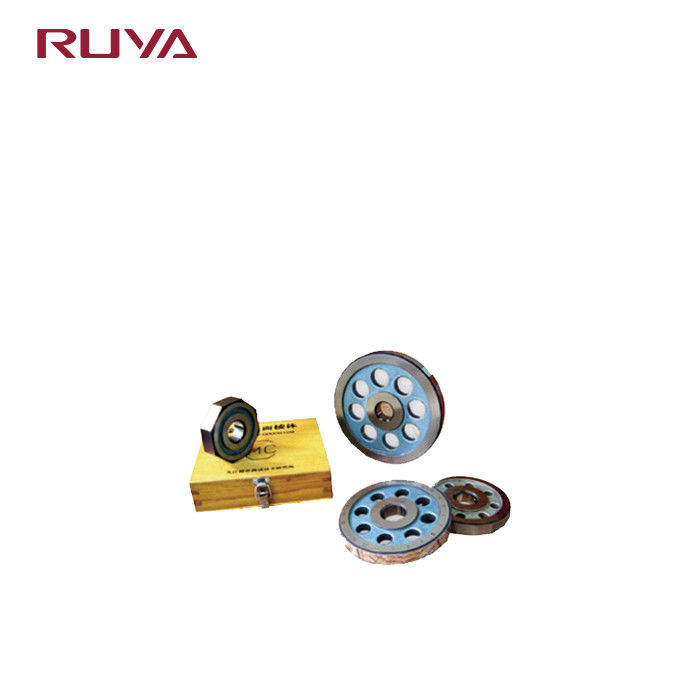

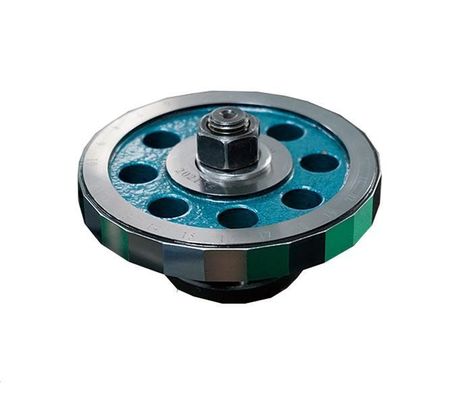

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon

Brand Name: RUYA
Model Number: DLT-8，DLT-12，DLT-17，DLT-23，DLT-24，DLT-36
MOQ: 1 pc
Price: negotiable
Delivery Time: 20-30 working days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Accuracy:
Grade 0, Grade 1
Working Surface Roughness Ra:
≤0.025
Packaging Details:
Wooden box
Supply Ability:
1-10 piece， 4-6 weeks
Highlight:

Precision Angle Measuring multi faceted prism

,

Metal multi faceted prism

,

DLT-8 multi faceted prism

Product Description
Precision Angle Measuring Metal Multi Faceted Prism
Precision Angle Measuring Metal Multi Faceted Prism
Product Description
The metal multi-faceted prism is a high-precision standard instrument primarily used to verify the indexing error of optical indexing heads, indexing tables, goniometers, and other circular indexing instruments. It also serves as an angle positioning reference in high-precision machining or measurement applications.
This instrument is available in two variants: even and odd planes. The even-plane version features integer degree working angles and is used to verify large periodic errors in the shafting system of circular indexing instruments, as well as for diameter measurement. The odd-plane version features non-integer degree working angles, enabling comprehensive verification of both large periodic errors in the shafting system and small periodic errors of the micrometer, allowing for accurate determination of circular indexing instrument uncertainty.
Product Parameters
Product Model Accuracy Working Angle Manufacturing Error Circumcircle Diameter Working Face Flatness Perpendicularity Between Working Face And Positioning Face Working Surface Roughness Ra
Octahedron DLT-8 grade 0 ±1" φ80mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"
Dodecahedral prism DLT-12 grade 0 ±1" Φ100mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"
17 hedral prism DLT-17 grade 0 ±1" Φ100mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"
23 hedral prism DLT-23 grade 0 ±1" Φ120mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"
24 hedral prism DLT-24 grade 0 ±1" Φ120mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"
36 hedral prism DLT-36 grade 0 ±1" Φ150mm 0.03μm 5" ≤0.025


grade 1 ±2"
0.05μm 10"

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 0
Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 1

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 2

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 3

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 4

Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 5
Precision Angle Measuring Multi Faceted Prism For High-Precision Angle Verification Polygon 6
