AutoMAT 5000 High Precision Dual Axis Autocollimator

Name: AutoMAT 5000 High Precision Dual Axis Autocollimator
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 5000U-3050, 5000UH-3050
Availability: InStock

Brand Name:	RUYA
Model Number:	5000U-3050, 5000UH-3050
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Objective Focal Length:

300mm

Lens Diameter:

50mm(NA.=90%)

Measuring Frequency:

25Hz TYP.

Weight:

4.6KG

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

2 Axis Autocollimator

AutoMAT 5000 Autocollimator

Autocollimator High Precision

Product Description

AutoMAT 5000 High-precision Dual-axis Autocollimator

Product Description

The AutoMAT 5000 autocollimator is a combination of high-precision, stability and ease of use which can responds optimally to different customer requirements and can cover a large range of applications in mechanical and optical field.

As the integration of a dedicate designed high-resolution and low-distortion lens, internal optical parts, ideal mechanical construction and fully digital design technology, results up to 0.1 arcsec ultra high accuracy for angle measurement. The precise and highly reliable measurement system excels in eas e of use. The new ergonomically adapted measurement software ensures a maximum usability with complete functionality.

Product parameters

Specification
Model		5000U-3050	5000UH-3050
Objective Focal Length		300mm	300mm
Lens Diameter		50mm(NA.=90%)	50mm(NA.=90%)
Light Source		High-power semiconductor light source (center wavelength λ=630nm)
Sensor		High-resolution sensor
Viewfinder		Electronic viewfinder displayed by the software
Measuring Frequency		25Hz TYP.	25Hz TYP.
Interface		USB2.0High Speed Interface	USB2.0High Speed Interface
Measuring Distances		25m(25meterMAX.)	10m(10meterMAX.)
Maximum measuring range		4000〞(arc sec.)	2400〞(arc sec.)
Resolution		0.1〞(arc sec.)	0.01〞(arc sec.)
Accuracy	±100’’(arc sec.)	±0.2〞(arc sec.)	±0.1〞(arc sec.)
	±1000’’(arc sec.)	±0.5〞(arc sec.)	±0.25〞(arc sec.)
Repeatability		0.05〞(arc sec.)	0.05〞(arc sec.)
Dimension		405mm(L)×84mm(W) ×110mm(H)
Weight		4.6KG

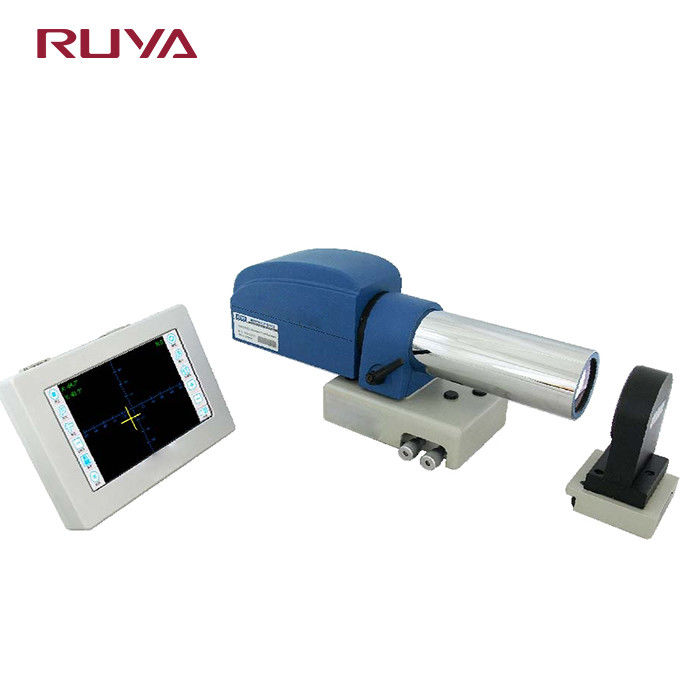

AutoMAT 5000 High Precision Dual Axis Autocollimator 0

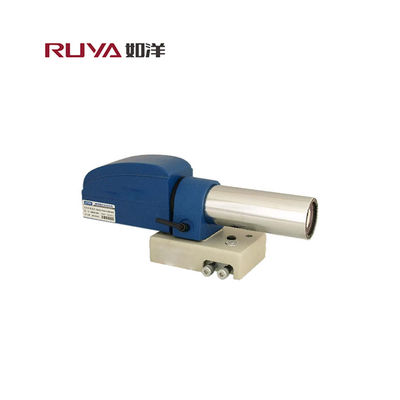

AutoMAT 5000 High Precision Dual Axis Autocollimator 1
