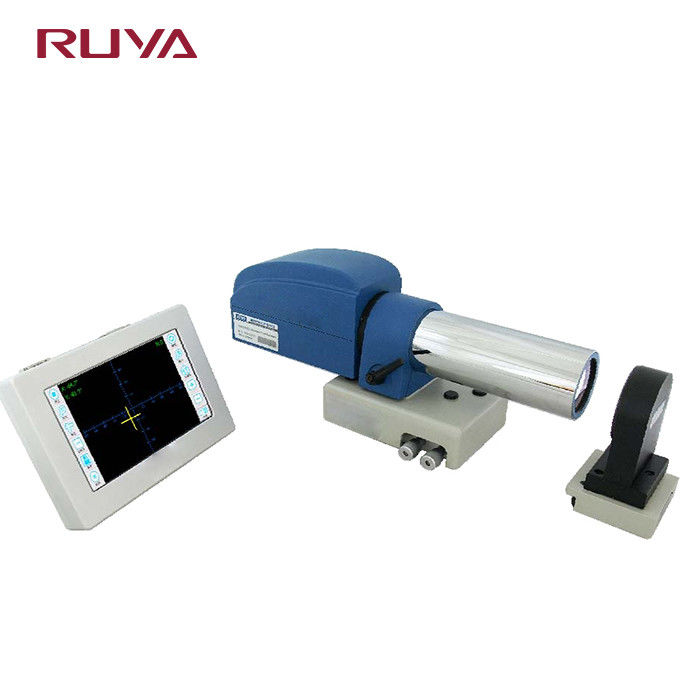

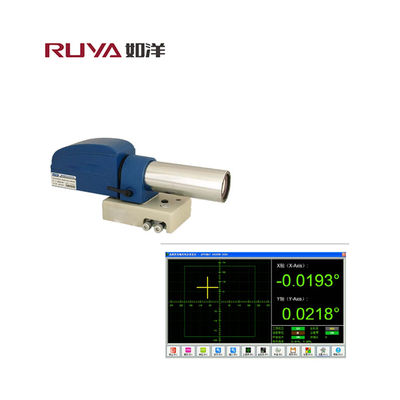

AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement

Name: AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 5000U-3050, 5000UH-3050
Availability: InStock

Brand Name:	RUYA
Model Number:	5000U-3050, 5000UH-3050
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Objective Focal Length:

300mm

Lens Diameter:

50mm(NA.=90%)

Measuring Frequency:

25Hz TYP.

Weight:

4.6KG

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

2 Axis Autocollimator

AutoMAT 5000 Autocollimator

Autocollimator High Precision

Product Description

AutoMAT 5000 High Precision Dual Axis Autocollimator

Product Overview

The AutoMAT 5000 autocollimator combines high-precision performance, exceptional stability, and user-friendly operation to meet diverse customer requirements across a wide range of mechanical and optical applications.

Through the integration of a specially designed high-resolution, low-distortion lens, internal optical components, optimal mechanical construction, and fully digital design technology, this system achieves ultra-high accuracy of up to 0.1 arcsec for angle measurement. The precise and highly reliable measurement system excels in ease of use, while the new ergonomically adapted measurement software ensures maximum usability with complete functionality.

Technical Specifications

Specification	5000U-3050	5000UH-3050
Objective Focal Length	300mm	300mm
Lens Diameter	50mm (NA.=90%)	50mm (NA.=90%)
Light Source	High-power semiconductor light source (center wavelength λ=630nm)
Sensor	High-resolution sensor
Viewfinder	Electronic viewfinder displayed by the software
Measuring Frequency	25Hz TYP.	25Hz TYP.
Interface	USB2.0 High Speed Interface	USB2.0 High Speed Interface
Measuring Distances	25m (25 meter MAX.)	10m (10 meter MAX.)
Maximum Measuring Range	4000″ (arc sec.)	2400″ (arc sec.)
Resolution	0.1″ (arc sec.)	0.01″ (arc sec.)
Accuracy ±100″ (arc sec.)	±0.2″ (arc sec.)	±0.1″ (arc sec.)
Accuracy ±1000″ (arc sec.)	±0.5″ (arc sec.)	±0.25″ (arc sec.)
Repeatability	0.05″ (arc sec.)	0.05″ (arc sec.)
Dimension	405mm (L) × 84mm (W) × 110mm (H)
Weight	4.6KG

AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement 0

AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement 1

AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement 2

AutoMAT 5000 High Precision Dual Axis Autocollimator with 300mm Focal Length for Ultra-Accurate Angle Measurement 3
