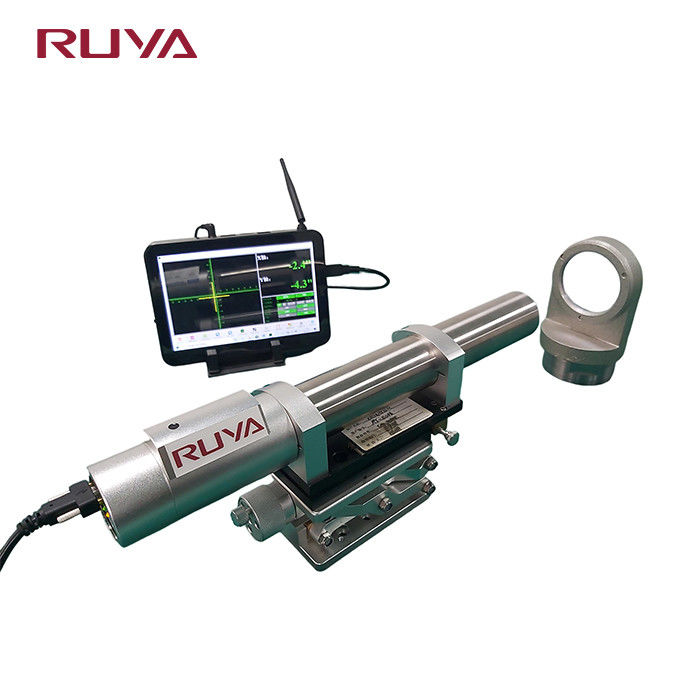

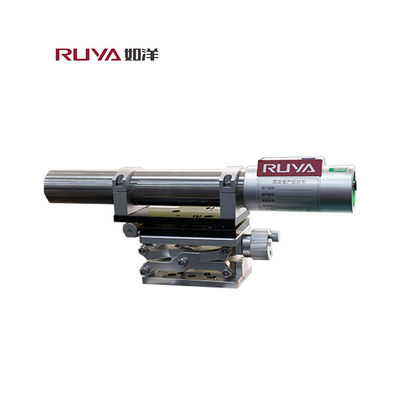

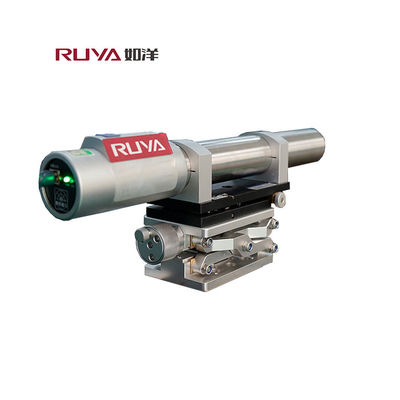

RY-5050 Photoelectric Dual Axis Autocollimator with 6m Measuring Distances

Name: RY-5050 Photoelectric Dual Axis Autocollimator with 6m Measuring Distances
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RY-5050
Availability: InStock

Brand Name:	RUYA
Model Number:	RY-5050
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Measuring Frequency:

7.5Hz

Measuring Distances:

Maximum Measuring Range:

1200˝×800˝(arc Sec.）

Repeatability:

0.04˝ (arc Sec.)

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

Photoelectric Autocollimator

Dual Axis Autocollimator

6m Autocollimator

Product Description

RY-5050 Photoelectric Dual Axis Autocollimator 6m Measuring Distances

Product Overview

The RY-5050 Photoelectric Dual-axis Autocollimator represents China's high-precision digital display instrumentation technology. This advanced instrument is specifically designed for precision measurement of small angles and is widely used in verification applications for multi-faceted prisms, multi-tooth indexing tables, and similar precision components.

Beyond angle measurement, the autocollimator excels in measuring straightness, parallelism, perpendicularity, and relative positioning of high-precision components including precision guide rails. Its non-contact positioning capability makes it ideal for precision measurement applications and instrument verification, supporting both automated and dynamic measurement requirements.

Characterized by exceptional precision, outstanding stability, and straightforward installation and operation, the RY-5050 has become an indispensable testing instrument for precision machinery manufacturing, instrument production, and related scientific research and measurement departments.

Key Features

High-precision small angle measurement capability
Dual-axis measurement functionality
Non-contact positioning for precision applications
Support for automated and dynamic measurement
Excellent stability and measurement consistency
User-friendly installation and operation
6-meter measuring distance capability

Technical Specifications

Parameter	Specification
Model	RY-5050
Objective Focal Length	500mm
Lens Diameter	50mm (NA= 90%)
Light Source	High-power semiconductor light source (center wavelength λ=630nm)
Sensor	High-resolution image sensor
Viewfinder	Electronic eyepiece displayed by the software
Measuring Frequency	7.5Hz
Interface	USB2.0 High Speed Interface
Measuring Distances	6m
Maximum measuring range	1200˝×800˝(arc sec.)
Resolution	0.01"(arc sec.)
Accuracy	±200″(arc sec.) \| 0.1″(arc sec.) full range \| 0.2″(arc sec.)
Repeatability	0.04˝ (arc sec.)
Dimension	590mm(L)×120mm(W)×150mm(H)
Weight	5KG

Standard Accessories

Accessory	Model	Quantity
2D adjustable base	DH65	1
Standard reflectors	MA60-76	1
Data cable	UCB15	1
Power adapter	PWA65A	1
Standard measurement software	AMS-SD	1
Dedicated instrument case	ZX-U5M-653119L	1
