RY-5050 Photoelectric Dual Axis Autocollimator 6m Measuring Distances

Name: RY-5050 Photoelectric Dual Axis Autocollimator 6m Measuring Distances
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: RY-5050
Availability: InStock

Brand Name:	RUYA
Model Number:	RY-5050
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Measuring Frequency:

7.5Hz

Measuring Distances:

Maximum Measuring Range:

1200˝×800˝(arc Sec.）

Repeatability:

0.04˝ (arc Sec.)

Packaging Details:

Wooden box

Supply Ability:

1-10 piece， 4-6 weeks

Highlight:

Photoelectric Autocollimator

Dual Axis Autocollimator

6m Autocollimator

Product Description

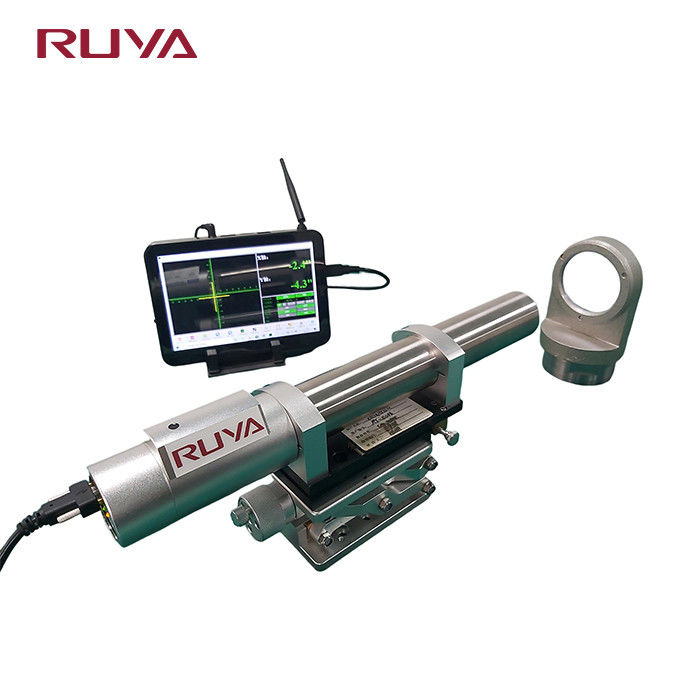

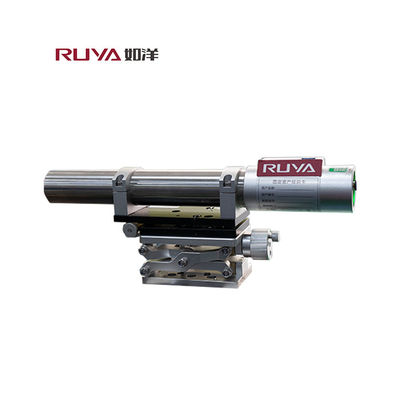

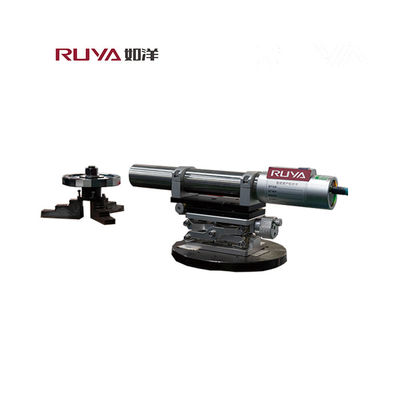

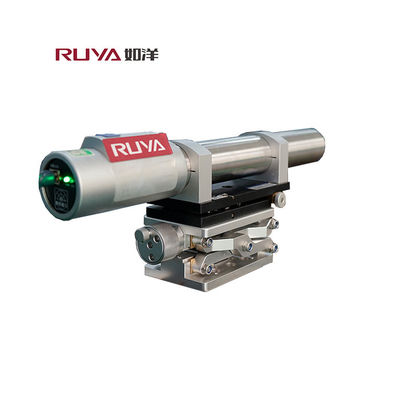

RY-5050 Photoelectric Dual-axis Autocollimator

Product Description

The digital display autocollimator currently belongs to the high-precision instrument in China. The instrument is mainly used for precision measurement of small angles, such as the verification of multi-faceted prisms, multi-tooth indexing tables, etc., and can also measure the straightness, parallelism, perpendicularity and relative position of precision parts such as high-precision guide rails. It can be used for non-contact positioning in precision measurement and instrument verification, and can also be used for automatic and dynamic measurement. The instrument has the characteristics of high precision, good stability, easy installation and use, and is an indispensable testing instrument for precision machinery, instrument manufacturing and related scientific research and measurement departments.

Product parameters

Specification
Model		RY-5050
Objective Focal Length		500mm
Lens Diameter		50mm (NA= 90%)
Light Source		High-power semiconductor light source (center wavelength λ=630nm)
Sensor		High-resolution image sensor
Viewfinder		Electronic eyepiece displayed by the software
Measuring Frequency		7.5Hz
Interface		USB2.0 High Speed Interface
Measuring Distances		6m
Maximum measuring range		1200˝×800˝(arc sec.)
Resolution		0.01"(arc sec.)
Accuracy	±200″(arc sec.)	0.1″(arc sec.)
	full range	0.2″(arc sec.)
Repeatability		0.04˝ (arc sec.)
Dimension		590mm(L)×120mm(W)×150mm(H)
Weight		5KG

Accessories	Model	Quantity
2D adjustable base	DH65	1
Standard reflectors	MA60-76	1
Data cable	UCB15	1
Power adapter	PWA65A	1
Standard measurement software	AMS-SD	1
Dedicated instrument case	ZX-U5M-653119L	1

RY-5050 Photoelectric Dual Axis Autocollimator 6m Measuring Distances 0

RY-5050 Photoelectric Dual Axis Autocollimator 6m Measuring Distances 1
