Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining

Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining

Brand Name:	RUYA
Model Number:	/
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Repeatability:

0.06″/0.12″

Load Capacity:

10-30kg

Packaging Details:

wooden box

Supply Ability:

1-10 pcs, 4-6 weeks

Highlight:

Multi Tooth Indexing Table

30kg Indexing Table

10kg rotary indexing machine

Product Description

Multi Tooth Indexing Table 10-30kg Load Capacity 0.06'' 0.12'' Repeatability

Product Overview

The multi-tooth indexing table is a precision instrument for angle measurement, serving as both an angle reference for measurement and an indexing device for precision machining. When used with a photoelectric autocollimator, it enables detection of high-precision angle devices including multi-faceted prisms, angle block gauges, and optical prisms.

As an indexing device, it facilitates the machining of precision parts with demanding angle requirements—such as hole positions, vertical planes, and parallel planes—on standard milling, boring, grinding, and other machine tools. The subdivision and combined differential capabilities of the multi-tooth indexing table also support high-precision arbitrary angle measurements.

Technical Specifications

Product	Model	Table Diameter (mm)	External Dimension (mm)	Accuracy	Angle Measurement Repeatability	Load Capacity (kg)	Weight (kg)
360-tooth vertical multi-tooth indexing table	DFT-360A	Φ205	Φ235*83	0.2″ 0.5″	0.06″0.12″	30	20
small size 360-tooth vertical multi-tooth indexing table	DFT-360X	Φ108	Φ140*60	0.3″ 0.5″	0.12″	10	4
small size 360-tooth vertical and horizontal multi-tooth indexing table	WDFT-360X	Φ108	Φ140*80	0.3″vertical 0.5″horizontal	0.12″	10	5
middle size 360-tooth vertical multi-tooth indexing table	DFT-360D	Φ140	Φ180*83	0.2″ 0.5″	0.06″0.12″	20	8
middle size 360-tooth vertical and horizontal multi-tooth indexing table	WDFT-360E	Φ160	Φ180*100	0.3″vertical 0.5″horizontal	0.12″	20	10
391-tooth multi-tooth indexing table	DFT-391A	Φ205	Φ235*83	0.2″ 0.5″	0.06″0.12″	30	20
small size 391-tooth multi-tooth indexing table	DFT-391X	Φ108	Φ140*60	0.3″ 0.5″	0.12″	10	4
small size 391-tooth vertical and horizontal multi-tooth indexing table	WDFT-391X	Φ100	Φ140*80	0.3″vertical 0.5″horizontal	0.12″	10	5
middle size 391-tooth vertical and horizontal multi-tooth indexing table	WDFT-391E	Φ160	Φ180*100	0.3″vertical 0.5″horizontal	0.12″	20	10
middle size 391-tooth vertical multi-tooth indexing table	DFT-391G	Φ140	Φ180*83	0.2″ 0.5″	0.06″0.12″	20	8
8mm-hole 552-tooth vertical multi-tooth indexing table	DFT-552A	Φ200	Φ235*88	0.2″ 0.5″	0.06″0.12″	30	20
middle size 552-tooth vertical and horizontal multi-tooth indexing table	WDFT-552E	Φ160	Φ180*100	0.3″vertical 0.5″horizontal	0.12″	20	10
552-tooth vertical multi-tooth indexing table with taper shaft	DFT-552F	Φ207	Φ235*100	0.2″	0.06″	30	20
720-tooth vertical multi-tooth indexing table	DFT-720A	Φ205	Φ235*100	0.2″ 0.5″	0.06″0.12″	30	20

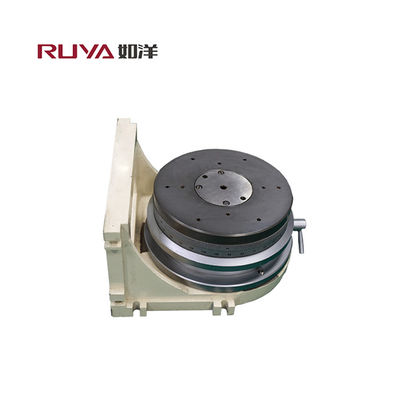

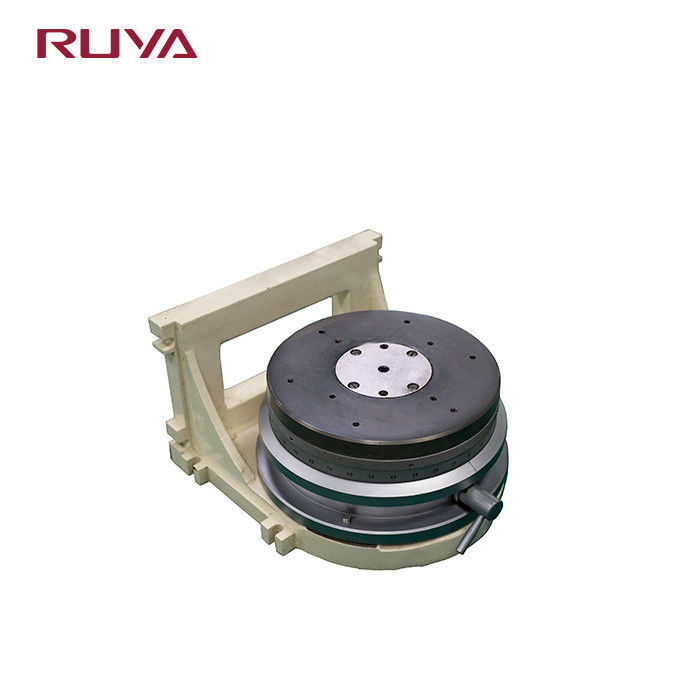

Product Images
