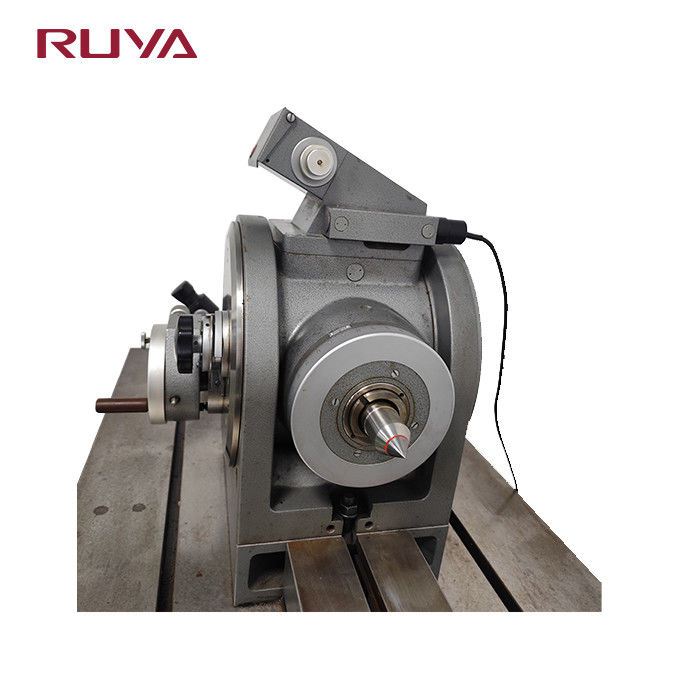

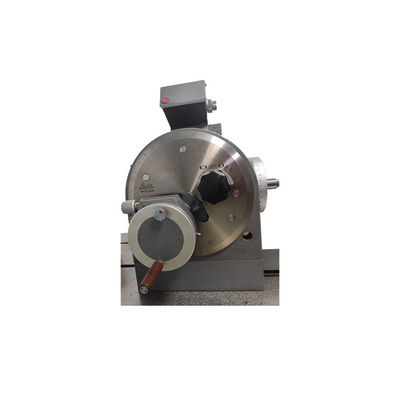

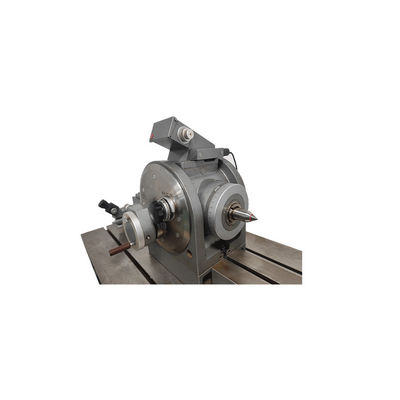

FD07 FHT12 Precision Digital Rotary Indexing Table 160mm Center Height

Name: FD07 FHT12 Precision Digital Rotary Indexing Table 160mm Center Height
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: FD07/FHT12
Availability: InStock

Brand Name:	RUYA
Model Number:	FD07/FHT12
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Measuring Range:

0-360°

Dial Indexing Value:

1°

Center Height:

160mm

Spindle Bore:

Morse 4#

Packaging Details:

wooden box

Supply Ability:

1-10 pcs, 4-6 weeks

Highlight:

Precision Indexing Table

Digital Indexing Table

FHT12 rotary indexing table

Product Description

FD07/FHT12 Precision Digital Indexing Table

Product Description

The digital indexing table is a very high-precision angle measuring instrument, and it can also be used as an indexing device for precision indexing processing.

Due to the high indexing precision of the instrument, it is usually used for high-precision angle measurement in the metrology and inspection department, and is also used for precision accelerometer precision detection.

Product Parameters

Specification
Measuring range	0-360°
Dial indexing value	1°
Measurement accuracy	1" (FHT12) 2”( FD07)
Measurement resolution	0.1" or 0.00001°
Center height	160mm
Spindle Bore	Morse 4#

FD07 FHT12 Precision Digital Rotary Indexing Table 160mm Center Height 0

FD07 FHT12 Precision Digital Rotary Indexing Table 160mm Center Height 1
