ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table

Name: ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: ZDFT-360A
Availability: InStock

Brand Name:	RUYA
Model Number:	ZDFT-360A
MOQ:	1 pc
Price:	negotiable
Delivery Time:	20-30 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load (kg):

Weight (kg):

Table Diameter (mm):

Φ205

Dimensions (mm):

368x138x362

Packaging Details:

wooden box

Supply Ability:

1-10 pcs, 4-6 weeks

Highlight:

Indexing Table Automatic

Indexing Table Multi Tooth

ZDFT-360A indexing turntable

Product Description

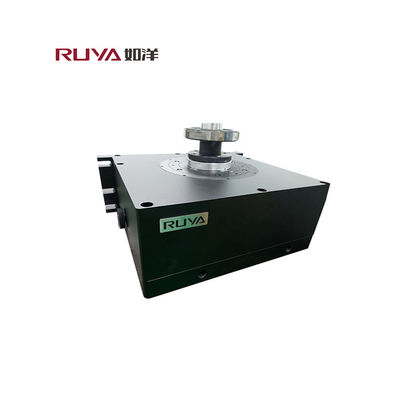

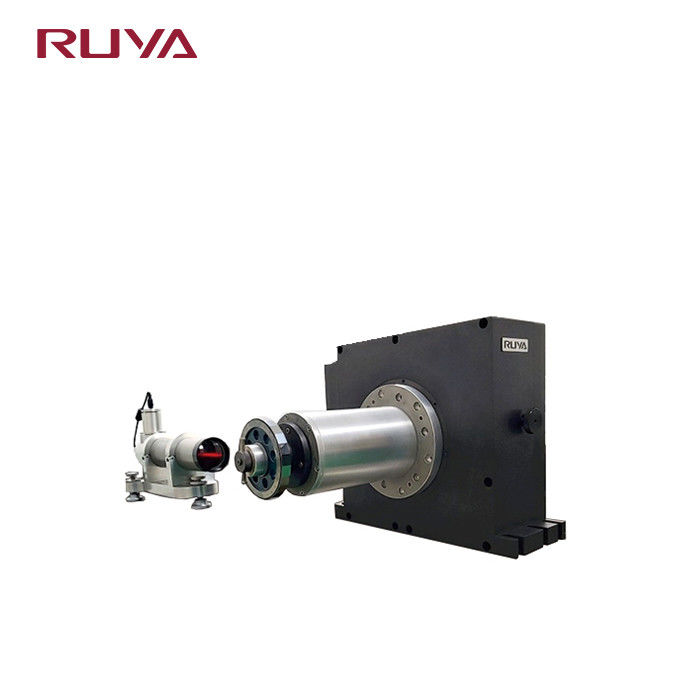

ZDFT-360A Program-controlled Automatic Multi-tooth Indexing Table

Product Description

The segmented multi-tooth indexing table consists of a multi-tooth indexing table and a set of segmented drum wheel reading systems, which can achieve the highest resolution of angle readings up to 0.1" on both fixed and movable reading sleeves, and is suitable for measurement sites where continuous readings are required.

The program-controlled multi-tooth indexing table is controlled by a computer-controlled stepper motor to realize the lifting and rotation of the upper tooth disc, so that the work of the multi-tooth indexing table is controlled by the program to achieve automatic testing.

Product Parameters

Model		ZDFT-360A
Table diameter (mm)		Φ205
Dimensions (mm)		368x138x362
Accuracy	Vertical use	0.5"
	Horizontal use	1"
Angle Measuring Repeatability Accuracy		0.2"
Load (kg)		30
Weight (kg)		45

ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table 0
